How to Clean Engine Block

Cleaning an engine block is a critical maintenance task that directly impacts the performance and longevity of your engine. Removing built-up deposits from internal and external surfaces facilitates smoother operation, prevents overheating, and makes future repairs less cumbersome.

Moreover, a clean engine block can drastically extend your engine’s serviceable life, ensuring reliability and efficiency. This guide provides a comprehensive approach on how to clean engine block and outlines various methods, each suited to different levels of contamination and expertise, while always keeping safety at the forefront.

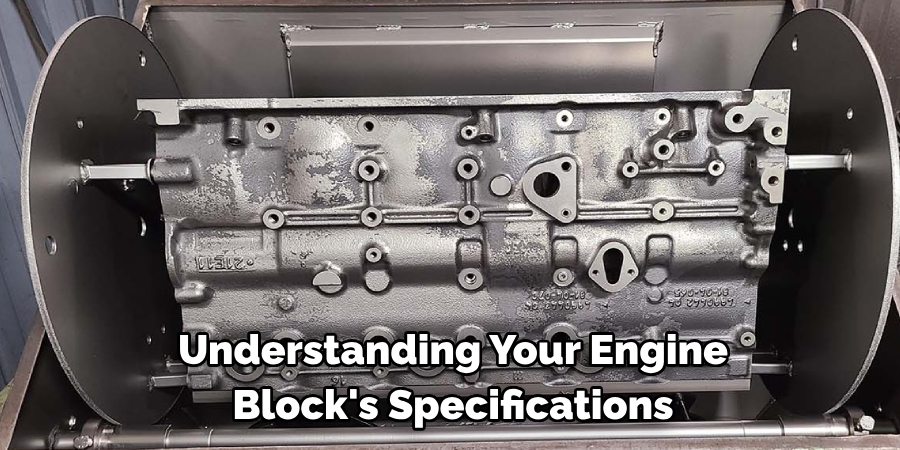

Understanding Your Engine Block

The engine block, often referred to as the “heart” of the vehicle, houses the crucial components that drive its power system. Its main structures include the cylinders, where the pistons move to create power; the water jackets, which are cavities surrounding the cylinders used for coolant flow to regulate temperature; and the oil passages, which facilitate lubrication, reducing friction among moving parts.

Typical engine block materials include cast iron — known for its durability and wear resistance — and aluminum, which is lighter and helps with heat dissipation but is more vulnerable to warping and chemical corrosion. Each material comes with specific cleaning sensitivities; for instance, aggressive chemicals or techniques that may be suitable for cast iron could damage an aluminum block.

Understanding your engine block’s specifications — type and material — is essential before undertaking a cleaning project. As cleaning processes can vary widely in their approach, the incorrect method can lead to damage rather than maintenance. Always identify your specific engine block type and consult with its maintenance manual or a professional for proper care and cleaning guidelines to ensure that you employ a suitable cleaning methodology tailored to its material composition.

Safety Precautions and Preparation

Before delving into the physical task of cleaning your engine block, ensuring a safe work environment and taking the necessary precautions are paramount.

A. Safety Gear:

• Gloves: Use chemical-resistant gloves to protect your skin from irritants and cuts.
• Eye Protection: Safety goggles are essential to shield your eyes from harmful splashes and debris.
• Respirator: A respirator or mask is crucial when using volatile substances to avoid inhaling fumes.
• Proper Clothing: Wear long sleeves and work pants to protect your skin, and use closed-toe shoes with slip-resistant soles for a stable footing in potentially slick areas.

B. Health and Environmental Warnings:

• Avoid the use of harmful chemicals that may not only damage the engine but also pose serious health risks. Always follow the recommendations on cleaning products.
• Harsh cleaning methods can cause irreversible damage to the engine. Therefore, understanding the type of engine block material before starting is extremely important.
• Work in a well-ventilated area to minimize the risk of fume inhalation. If indoors, ensure the presence of an exhaust fan or keep doors open for continuous air circulation.

C. Responsible Disposal:

• Properly dispose of used cleaning fluids and rags according to local regulations, as they often contain contaminants harmful to the environment.

D. Preparation Steps:

• Disconnect the Battery: Ensure the vehicle’s battery is disconnected before commencing to prevent electric shock or unwanted electrical reactions.
• Drain Fluids: Carefully drain all fluids, such as oil and coolant, from the engine to avoid contamination and to work on a dry block.
• Remove External Components: Methodically remove external parts, including manifolds, hoses, and sensors. Label each component and its respective connectors to facilitate proper reassembly later.
• Seal Openings: Plug or securely cover any open ports, passages, and cylinder bores to prevent debris, water, or cleaning agents from entering and causing damage.

How to Clean Engine Block: Choosing the Right Cleaning Method

Selecting an effective cleaning method for your engine block is vital to remove contaminants without causing harm. Depending on the level of dirt accumulation and your comfort level with various techniques, you can opt for several approaches:

1. Simple Degreasing:

For surface-level dirt, such as oil and grime on the exterior, opt for a commercial degreaser that’s formulated specifically for engine components. Apply the degreaser according to its instructions, then rinse with water thoroughly to remove any residue. Avoid using direct high-pressure water streams, which can push grime into sensitive areas or remove necessary lubrication.

2. Soaking and Brushing:

Internal passages of the engine block can amass oil, coolant deposits, and other contaminants. In such cases, a combination of a dedicated engine cleaner and water can be used. Submerge the engine block in this solution within a large container, allowing enough time for soaking. Following this, gently scrub the block using appropriate brushes and then rinse thoroughly to clear out all loosened debris.

3. Hot Tanking:

Professional hot tanking might be required for more thorough internal cleaning, especially with significant sludge or carbon deposits. This method employs a heated, alkaline solution powerful enough to dislodge stubborn contamination. However, the high temperatures and caustic solutions used require caution, especially for aluminum blocks, which can warp under extreme conditions.

4. Electrolytic Cleaning:

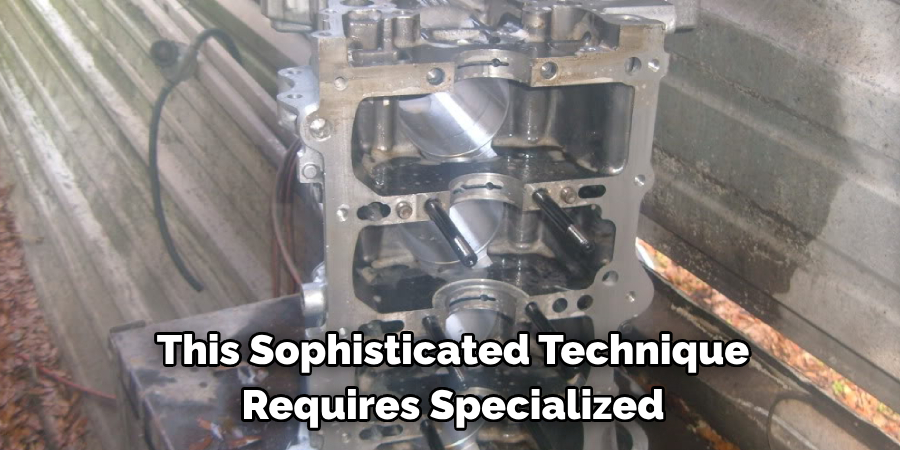

Reserved for severe cases where traditional methods fail, electrolytic cleaning utilizes electrical currents to eradicate rust and scaling. This sophisticated technique requires specialized knowledge, equipment, and strict safety measures due to the inherent electrical and chemical hazards. It’s recommended to seek professional guidance or consider this method only if you’re experienced and equipped to handle it safely.

Choose your cleaning method based on the particular needs of your engine block and your ability to safely execute the cleaning process. Remember to evaluate the compatibility of the method with the engine’s material and consult professionals when in doubt to avoid accidental damage.

5. : Degreasing

Simple degreasing is a crucial first step in engine maintenance, particularly suitable for routine surface cleaning tasks. It’s an uncomplicated process that, when done correctly, can significantly improve the appearance and longevity of your engine block by removing surface contaminants that can lead to corrosion over time.

A. Materials:

To effectively decrease your engine block, ensure you have the following materials at hand:

• Engine Degreaser: Choose a high-quality degreaser that is compatible with your engine’s materials.
• Spray Bottle: For convenient application of the degreaser.
• Brushes (Various Sizes): These will facilitate cleaning in tight spaces and around complex geometries.
• Rags: Have plenty of clean rags ready to wipe away grime and for drying the engine later.
• Water Hose with Adjustable Nozzle: This will aid in rinsing without causing damage due to excessive water pressure.

B. Process:

1. Prep Your Area: Ensure the cleaning area is well-ventilated and all necessary materials are within reach.
2. Apply Degreaser: Begin by generously applying engine degreaser to the external surfaces of the block using the spray bottle, taking care to avoid sensitive areas such as electrical components, sensors, and wiring harnesses. Liberal coverage is key, as the degreaser needs to break down and lift the grease and dirt.
3. Activation Time: Allow the degreaser to sit for a few minutes. This dwell time lets the chemical act on the grime and start loosening.
4. Scrubbing: Using brushes of various sizes, scrub the engine block, focusing on stubborn areas such as the oil pan and gasket surfaces. The goal is to manually agitate the degreaser to help lift the grime.
5. Rinse Thoroughly: After scrubbing, rinse the engine block thoroughly with water, using an adjustable nozzle to control the pressure. It’s crucial to rinse away all traces of the degreaser to prevent it from attracting more dirt.
6. Inspect and Repeat: Inspect the engine for any remaining grime. If necessary, repeat the degreasing process until the block is clean.
7. Dry: Once the engine block is clean, dry it completely with rags to prevent any water-induced issues, paying special attention to areas that trap water.

Utilizing this simple degreasing process will not only maintain aesthetic standards but will also allow for a more detailed inspection of the engine block’s condition, as clean surfaces can reveal potential issues such as cracks or leaks that may require attention. Remember, a well-maintained engine block is integral to the performance and reliability of your vehicle.

6. Soaking and Brushing

When faced with extensive internal engine block contamination, simple degreasing may not suffice. The soaking and brushing method is a step-up approach that deeply cleanses the internal passages of the engine block, helping to dissolve and remove stubborn oil and coolant deposits that can negatively impact engine performance.

A. Materials:

To perform a thorough soaking and brushing of your engine block, you will need the following materials:

• Engine Cleaner: A quality cleaner that is specifically designed for engine parts and is safe for the type of metal your block is made of.
• Large Container: The container must be large enough to submerge the engine block fully.
• Brushes (Various Sizes): Different sizes are needed to reach various passages and surface areas within the engine block.
• Rags: Clean rags or towels to dry off the engine after rinsing and to clean up any spills.
• Safety Siphon (Optional): A siphon can be helpful for removing the dirty cleaning solution without making a mess.
• Water Hose with Adjustable Nozzle: For rinsing the block after soaking and scrubbing, the adjustable nozzle allows for control over the water flow and pressure.

B. Process:

1. Prepare Solution: Mix the engine cleaner with water in the large container according to the product’s instructions for the optimal cleaning mixture.
2. Submerge Engine Block: Carefully lower the engine block into the cleaning solution container, ensuring that all internal passages are completely covered by the liquid. Exercise care to prevent any damage during submersion.
3. Soaking Time: Let the engine block soak for the amount of time recommended by the cleaner’s manufacturer, usually between 30-60 minutes.
4. Clean External Components: While the block is soaking, clean any external components that were removed prior to the soaking process separately.
5. Scrubbing: After the soak, use brushes of various sizes to scrub the engine block thoroughly. Concentrate particularly on internal passages, cylinder walls, and other areas where grime accumulates.
6. Solution Removal: If available, use a safety siphon to carefully remove the dirty cleaning solution from the container, which helps to control waste and avoid pollution.
7. Rinse the Engine Block: Rinse the block thoroughly with water using the hose with an adjustable nozzle to ensure all the cleaning solution and loosened debris are washed away. Adjust the nozzle to a moderate setting that provides enough pressure to clean without causing damage.
8. Drain and Dry: Stand the block upright, if possible, to aid in draining excess water. Ensure the block is completely dry before reassembly; residual moisture can cause rust or other issues.

Soaking and brushing are key to returning an engine block to its optimal performance capabilities. Deep cleaning of the internal structures will support the engine’s overall health, ensuring that it operates smoothly and efficiently. After completing this process, the engine block is ready for inspection and, if necessary, further maintenance or repair.

7. Hot Tanking

Hot tanking is an advanced cleaning method typically used for engine blocks that are heavily soiled with carbon deposits, sludge, and old oil that traditional cleaning methods cannot remove. This process requires professional services equipped with specialized machinery that can immerse and agitate the engine block in a hot alkaline solution.

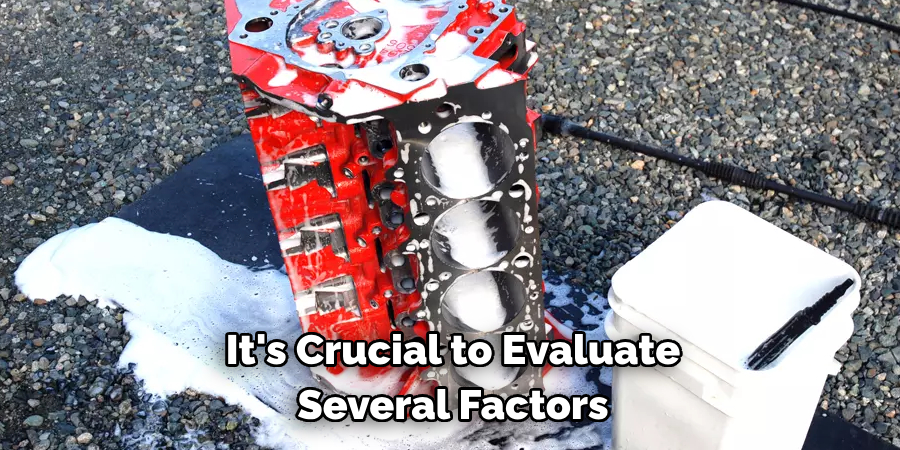

A. Considerations:

Before opting for hot tanking, it’s crucial to evaluate several factors. The procedure involves high temperatures and strong chemicals, so only consider it if your engine block is excessively dirty and warrants such deep cleaning. Make sure that the service provider has extensive experience with the type of metal your engine block is made of, whether it be cast iron or aluminum, and can accommodate its size. Particular attention should be paid to aluminum blocks, which are more susceptible to warping under high temperatures—a risk that must be weighed against the benefits of thorough cleaning.

B. Process:

Select a reputable facility with a track record of quality service when choosing a hot tanking service. You will need to provide detailed information about your engine block, including its material, size, and any particular areas of concern. The service will handle all aspects of disassembly, hot tanking, and reassembly according to their established procedures. After the process, it’s imperative to conduct a thorough inspection of the engine block for any signs of warping, damage, or incompletely removed deposits before proceeding with reassembly and further maintenance.

8. Electrolytic Cleaning

Electrolytic cleaning is a precise method that leverages electricity and chemical reactions to strip away rust and contaminants from metal parts, including engine blocks. This process requires a careful setup with a power source, electrolyte solution, and sacrificial electrodes.

Warning: This technique poses risks due to the combination of electricity and chemicals. It’s only suitable for those with an advanced understanding of the process. It should be conducted with stringent safety measures or deferred to professionals, especially if prior cleaning methods have been unsuccessful. Thorough precautions and detailed knowledge are paramount; do not undertake electrolytic cleaning without adequate preparation and expertise.

That’s it! You’ve now learned how to clean engine block using various methods. Whether you opt for the simple yet effective manual method or the more advanced processes, regular engine block cleaning is crucial to maintaining your vehicle’s performance and longevity. Remember to always follow safety measures and manufacturer instructions when working on your engine and consult a professional if necessary.

Troubleshooting and Tips

When working to clean an engine block, it’s not uncommon to encounter a few hurdles along the way. Here are tips for addressing common issues:

• Stubborn Deposits: If you find that grime and carbon residue are resisting standard cleaning methods, you might need to employ stronger cleaning solutions or extend the soaking period. However, always keep safety in mind and confirm that any harsher chemicals are compatible with your engine block’s material to avoid causing damage.
• Leaks: After cleaning and reassembly, leaks are a common issue. Prevent this by double-checking all seals and gaskets, ensuring they are undamaged and correctly seated. Components should be tightened according to the manufacturer’s specifications to ensure proper sealing.
• Rust: Minor surface rust can often be resolved with specialized rust removers or gentle sanding. However, extensive rust may be symptomatic of underlying issues, necessitating a professional assessment.

General tips to ensure a smooth and effective cleaning process include:

• Use dedicated engine cleaning products designed specifically for engine components.
• Proceed carefully to avoid damaging any delicate engine components during the cleaning.
• Document the disassembly process with photos to facilitate an accurate reassembly.
• If the cleaning needs become complex or if there’s any uncertainty about the procedures, don’t hesitate to seek professional help.

Always remember that meticulous attention to detail will contribute to the longevity and performance of your engine.

Conclusion

In conclusion, understanding how to clean engine block is critical for any vehicle maintenance enthusiast or professional. Whether you decide to proceed with at-home methods like manual brushing or soaking or advanced procedures such as hot tanking or electrolytic cleaning, each technique has its own set of benefits and risks.

Remember to always prioritize safety, adhere to manufacturers’ guidelines, and consider the specific needs of your engine block material. By following the outlined instructions and tips, you can ensure that you not only achieve a clean engine block but also maintain its integrity and functionality for years to come. If ever in doubt, seeking professional assistance is a wise choice to prevent any potential damage to your engine.
