Upgrading your Jeep’s air intake system can be an impactful step toward achieving enhanced performance and efficiency. Understanding how to upgrade jeep air intake system not only revs up power but also potentially increases engine efficiency. Before diving into modifications, assessing your specific needs and ensuring the components are compatible with your model is crucial.
This comprehensive guide will delve into various upgrade options, such as Cold Air Intakes (CAIs), Short Ram Intakes (SRIs), and Performance Air Filters while outlining their respective advantages and considerations to inform your upgrade path.
Understanding Your Needs and Options
When considering an upgrade for your Jeep’s air intake system, it is crucial to identify your primary goals. Are you seeking significant performance gains, a throatier engine roar, or enhanced protection against dust and debris? Understanding what you hope to achieve helps narrow down your choices to the most suitable intake system.
Performance gains often translate into better throttle response and more power output. This can be particularly appealing for Jeep enthusiasts who enjoy an aggressive driving style or often carry heavy loads. If your driving conditions include frequent off-road excursions, dust protection will be a key factor, pushing you towards systems with robust filtration capabilities.
The type of system you choose will also depend on other engine modifications. For instance, a turbocharged or supercharged engine might benefit more from a Cold Air Intake (CAI) designed to pull in cooler air, which can contribute to increased combustion efficiency.
Cold Air Intakes (CAIs) are favored for their potential to lower air temperature entering the engine, thereby providing a denser air charge capable of improving combustion and, consequently, horsepower. However, they are typically more expensive and can be more challenging to install.
Short Ram Intakes (SRIs) offer a more straightforward and often less expensive upgrade, featuring a shorter air path to the engine and generally easier installation. They can increase power but may not provide the same level of cooling efficiency as CAIs.

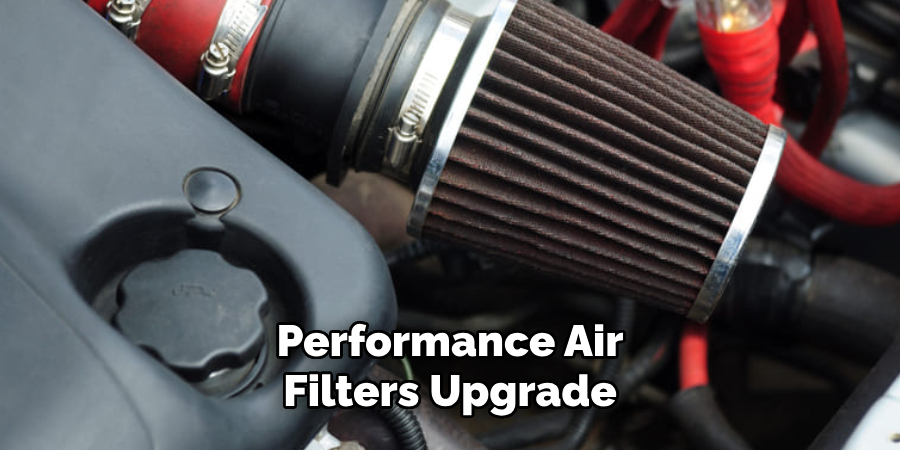

Lastly, Performance Air Filters serve as a simple and cost-effective upgrade, improving airflow and trapping more contaminants than standard filters. While they can increase marginal performance, the primary benefit lies in better filtration and longer service intervals.
In your decision-making process, consider the advantages and disadvantages of each system. CAIs may offer the best performance enhancement but require a greater investment. SRIs provide a balance of improved performance with a simpler setup. Performance filters offer the least performance gain but can be a practical first step into the world of customization.
Researching Compatible Systems
The cornerstone of any successful upgrade begins with selecting a system compatible with your Jeep model and engine. Opting for an intake system that doesn’t match your Jeep’s specifications can lead to many issues, from negligible performance gains to catastrophic engine damage.
Incompatible systems may not align with existing engine parameters or spaces, causing airflow disruptions or even physical interference with other components.
To avoid these pitfalls, it is paramount to conduct thorough research. Start by consulting with reputable performance shops. These experts can provide personalized recommendations based on extensive experience.
Likewise, online automotive forums are goldmines of information where you can learn from the collective experiences of fellow Jeep enthusiasts. Brand websites often provide detailed compatibility charts that narrow your options to those expressly designed for your model and year.
When sifting through potential upgrades, popular brands like K&N, Airaid, and Volant offer model-specific solutions that promise ease of installation and optimized performance for your Jeep’s unique requirements.
These brands have built confidence among the community for their commitment to quality and compatibility. Mentioning their names piques the reader’s interest and helps guide them toward tried-and-tested solutions.
Remember, it’s not solely about picking an air intake; it’s about choosing an integration that unlocks your Jeep’s full potential without adverse effects. Always cross-reference multiple sources and consult with professionals to ensure that your selected air intake system will harmonize with your vehicle, providing you with the benefits you desire without unwelcome surprises.
Understanding the Installation Process

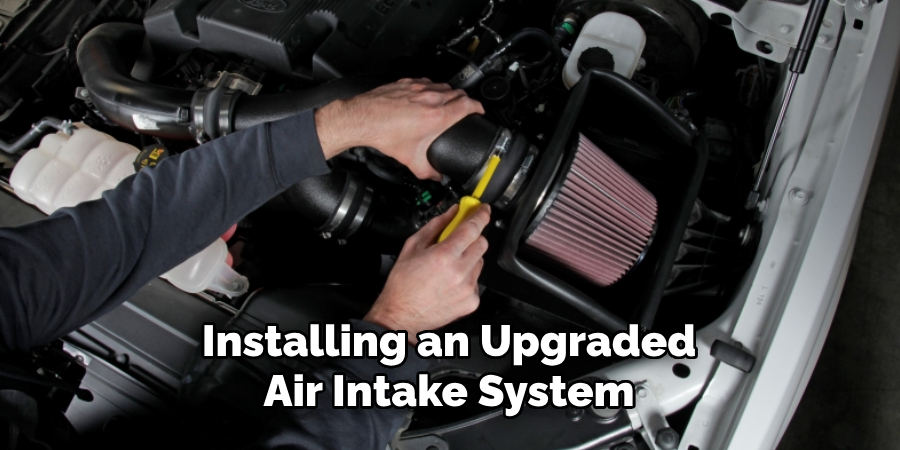

Installing an upgraded air intake system, whether a CAI, SRI, or performance air filter, involves a series of steps that require careful attention to detail and a fundamental understanding of your Jeep’s engine bay.
The common starting point for any intake upgrade is the removal of the stock air box and existing tubing, which may necessitate the detachment of clips, sensors, and hoses. Once these components are out of the way, the new system can be fitted.
For CAIs and SRIs, this involves securing new pipes, attaching couplers, and installing air filters. These systems frequently come with all necessary hardware and detailed instructions to aid in alignment and connection to the throttle body or mass airflow sensor.
Performance air filters usually require a simpler substitution process in the existing air box location. However, no matter the type of system, it’s crucial to follow the manufacturer’s guidance meticulously to ensure a seal without air leaks and proper sensor integration, which are vital for smooth operation and accurate readings.
DIY installation can be a rewarding project, but assessing your mechanical skill level and available tools is essential before embarking on this task. Sufficient knowledge about engine components and confidence in handling basic tools will determine whether you can proceed independently or if professional installation is warranted.
As always, the evaluation of self-readiness and caution during the installation process cannot be overstated – it is the pivot on which the success of your upgrade rests.
Benefits and Considerations
Several tangible benefits can be anticipated when contemplating an upgrade to a high-performance air intake system for your Jeep. Firstly, increased horsepower and torque are commonly reported, significantly if the new system is complemented by proper engine tuning.
The precise gains will vary, but the more efficient flow of air feeds your engine’s combustion process, and with the right calibration, this can mean a noticeable boost in performance.

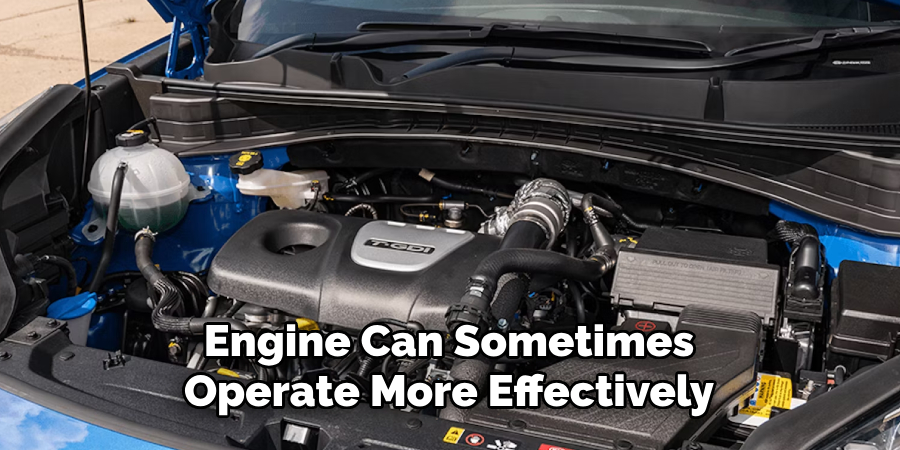

Improved fuel efficiency is another possible advantage. By optimizing the airflow, the engine can sometimes operate more effectively, which can translate into better miles per gallon — although, it’s worth noting that these efficiency gains can be marginal and depend on driving habits and conditions.
The enhanced engine sound is a delight for many enthusiasts. A new air intake system can give your Jeep a more aggressive, throaty note during acceleration, endowing your ride with an auditory character that matches its improved functionality.
For those who love to explore off-road trails, select air intake systems equipped with advanced filters can offer better dust protection, prolonging the life of your engine in challenging environments by keeping harmful particles at bay.
However, these upgrades are not without considerations. Retrofitting your Jeep with non-standard parts holds the potential of voiding the warranty, particularly if the modification can be linked to any damage or failure. Increased noise levels might also be a byproduct, especially with some SRIs, which may not be ideal for all drivers.
Furthermore, to ensure that the performance improvements fall within legal parameters, tuning might be required to achieve optimal performance while maintaining emissions compliance. Before proceeding, it’s vital to weigh these benefits against the considerations and decide if the upgrade aligns with your personal needs and aspirations for your Jeep.
Popular Upgrade Options and Comparisons
Jeep enthusiasts have a wealth of options when choosing an air intake system, and among the most debated are the Cold Air Intake (CAI) and Short Ram Intake (SRI). CAIs are designed to draw in cooler, denser air from outside the engine bay, thus enhancing combustion and resultant power.
A popular CAI for various Jeep models is the K&N High-Performance Cold Air Intake. It boasts a notable increase in horsepower and a deeper engine growl, while the heat shield helps maintain cooler air entry.

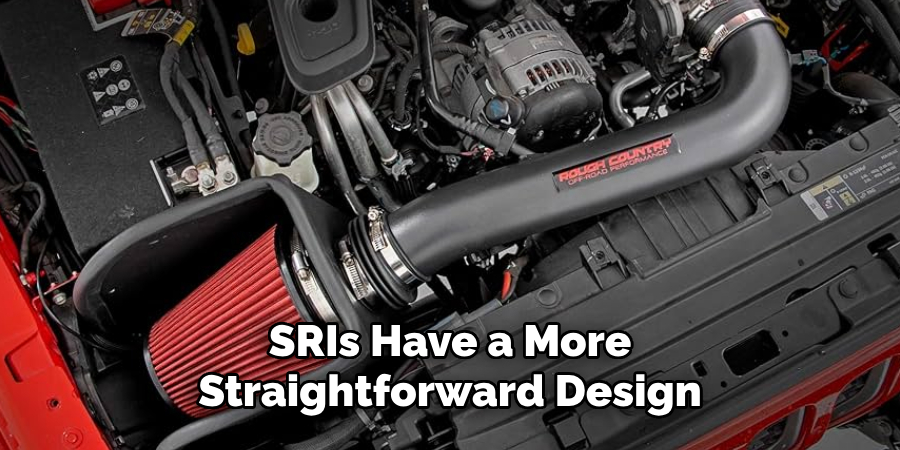

In contrast, SRIs have a more straightforward design and are located closer to the engine, which makes installation easier but draws in warmer air, slightly diminishing the performance boost compared to CAIs. The Airaid Performance Air Intake is a well-regarded SRI choice due to its high-flow filter and quality construction that promises gains in throttle response and engine sound.
Between the two, CAIs usually trump SRIs in outright performance gains but can be more complex to install due to their routing. SRIs are simpler to install and can offer more immediate throttle response, but the performance gains might not be as pronounced. The following table contrasts the two for Jeep Wrangler TJ and Jeep Grand Cherokee:
| Intake Type | Model | Estimated HP Gain | Sound Improvement | Installation Complexity |
|——————-|—————–|——————-|——————-|————————-|
| CAI – K&N | Wrangler TJ | Up to 8.17 HP | Enhanced Rumble | Moderate |
| SRI – Airaid | Grand Cherokee | Up to 5 HP | Aggressive Note | Easy |
Moreover, for those Jeep owners looking for a less intrusive upgrade, performance air filters like the Volant Pro 5 offer a simple replacement to the stock filter which can provide improved air flow and marginal performance improvements without the complexity of full system replacements.
The choice between a CAI, an SRI, or a performance air filter ultimately hinges on the driver’s goals for performance gain, acceptable noise levels, and installation engagement. Each option should be considered with an eye towards the specific model of Jeep, the driver’s mechanical skill, and the desired balance between power increment and aesthetic enhancement.
How to Upgrade Jeep Air Intake System: In-Depth Installation Guide
For Jeep enthusiasts looking to install a Cold Air Intake (CAI) system, let’s examine the installation process for the very popular K&N High-Performance Cold Air Intake designed for the Jeep Wrangler TJ. This guide provides detailed, step-by-step instructions to ensure that you can efficiently undertake this upgrade from the comfort of your garage.
Step 1: Preparation and Safety
Before starting, disconnect your Jeep’s negative battery cable to ensure safety. Gather the necessary tools, which typically include screwdrivers, pliers, a ratchet with various sockets, and an Allen wrench set. Lay out all the parts and familiarize yourself with the components and hardware included in the K&N kit.
Step 2: Remove the Stock Air Box

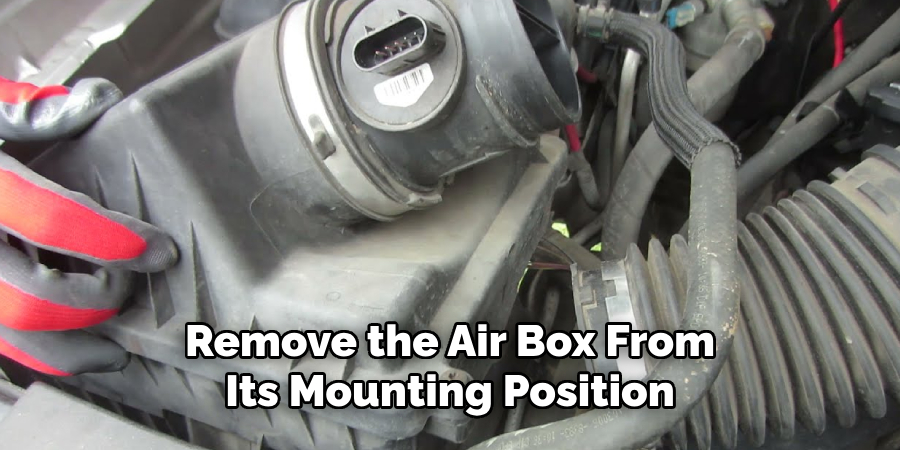

Begin by unscrewing the clamps that secure the factory air intake tube to the air box and throttle body. Also, disconnect any attached sensors carefully. Remove the air box from its mounting position, often involving pulling it upward from rubber grommets that hold it in place.
Step 3: Install the Heat Shield
Many CAI systems come with a heat shield or a similar enclosure. Position it within the engine bay as instructed by the manual, using existing screw holes or the provided brackets. Ensure it’s securely fastened to prevent movement.
Step 4: Mount the New Air Intake Tube
Attach the new air intake tube to the throttle body. Use the provided silicone hoses and clamps to secure it. If your system includes parts for relocating sensors, follow the K&N guide for sensor installation.
Step 5: Connecting Components
Reconnect any electrical sensors that you previously detached, ensuring they’re fixed firmly into the new air intake tube. This process may require adapters included with your K&N kit.
Step 6: Air Filter Installation
Install the new air filter onto the intake tube. Ensure it’s a snug fit to maximize the filtration benefit. The air filter should also connect easily to the interior of the heat shield.
Step 7: Final Inspection and Testing
Once all parts are installed, double-check all connections, clamps, and mounts for proper tightness and ensure no loose tools or parts are left in the engine bay. Reconnect the negative battery cable and start the engine.
Listen for any unusual noises and check if the engine light is off. Monitoring the Jeep’s performance for issues in the subsequent days after installation is crucial.
Remember, photos or illustrations with your specific K&N performance kit will significantly enhance these instructions by providing a visual aid. Don’t rush, and take your time to understand each step. If you encounter challenges like sensor connectivity or air filter fitment issues, consult the K&N customer support or local Jeep groups online and often share troubleshooting advice.
That’s it! You’ve now learned how to upgrade jeep air intake system like a pro, and with your newfound knowledge, you can enjoy the full benefits of increased horsepower and engine sound. So go ahead, hit those off-road trails, or cruise through the city streets in style and power with your upgraded CAI system.
Tuning Considerations and ECU Adjustments
Following installing a performance intake system, especially a Cold Air Intake (CAI), it is critical to consider the need for engine tuning to ensure optimal performance and maintain the vehicle’s health.
The Engine Control Unit (ECU) may require recalibration because the increased airflow can alter the air-to-fuel ratio, potentially leading to inefficient combustion and engine misbehavior.
Tuning methods range from professional dyno tuning, where the car is tested under controlled conditions to precisely adjust the ECU, to utilizing aftermarket performance programmers that streamline the process by allowing the driver to select pre-configured or custom tuning maps. The former is renowned for its customizability and accuracy, while the latter offers convenience and on-the-fly adjustability.

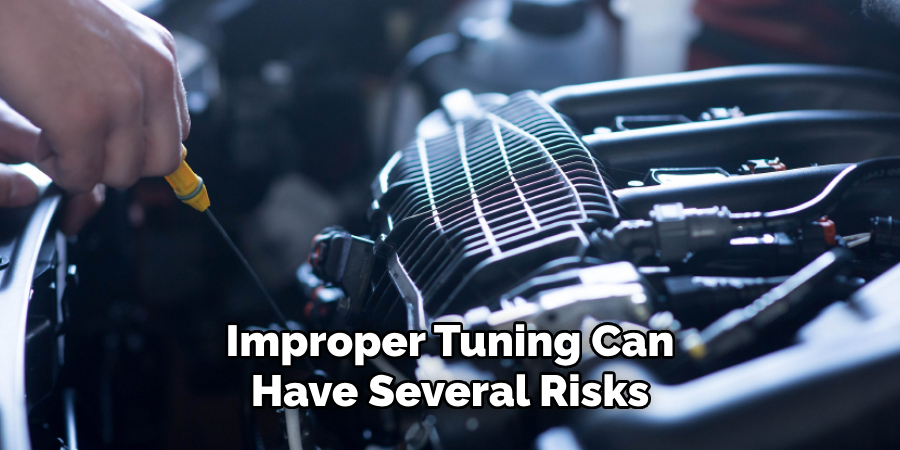

Improper tuning can have several risks, including reduced engine performance, increased emissions, or even severe engine damage. Moreover, such modifications can impact emissions compliance, possibly violating local regulations. In terms of warranty, unauthorized tuning can void the manufacturer’s warranty, leaving the owner to bear any related repair costs.
Given these nuances and potential pitfalls, it is often recommended that modifications involving significant changes to the engine’s air intake and fuel systems be accompanied by professional advice or services to ensure the vehicle’s performance, compliance, and operational reliability.
Maintenance and Long-Term Care
Maintaining your upgraded air intake system is crucial for sustaining optimal performance and extending its lifespan. Regular air filter cleaning is paramount, typically every 15,000 to 30,000 miles, depending on driving conditions, but always refer to the manufacturer’s guidelines.
K&N, for instance, offers a cleaning kit that restores air flow efficiency so your filter performs virtually like new. To clean, remove the filter, apply the cleaner solution, rinse with water, let it dry completely, and then evenly apply the oil.
Inspect the entire intake system periodically for any signs of wear, leaks, or damage. A compromised system can lead to unfiltered air entering the engine, which is detrimental to its health. Ensure all clamps and couplings are secured tightly to prevent leaks affecting the air-to-fuel ratio.
Be mindful of warranty implications; some manufacturers assert that aftermarket parts, such as CAI systems, void warranties. To protect yourself, familiarize yourself with the Magnuson-Moss Warranty Act, which provides certain consumer protections.
For optimal upkeep, follow specific cleaning procedures and products recommended for your intake system. Always consult the manufacturer’s instructions for detailed maintenance guidelines. This tailored care ensures your upgraded system remains effective and reliable, contributing to your vehicle’s overall performance and health.
Conclusion and Final Words
In summary, upgrading your Jeep with a K&N air intake system can offer significant performance benefits, provided it’s installed carefully. Planning, thorough research, and professional advice are paramount for navigating the complexities and ensuring you maximize your investment.
Safety and adherence to emissions standards are as critical as the upgrade. We hope this guide enhances your vehicle’s power while maintaining its reliability and compliance.
Thank you for following along, and we welcome any further questions or discussions that you might have regarding your Jeep enhancement journey. Thanks for reading our post about how to upgrade jeep air intake system. Enjoy the ride!
