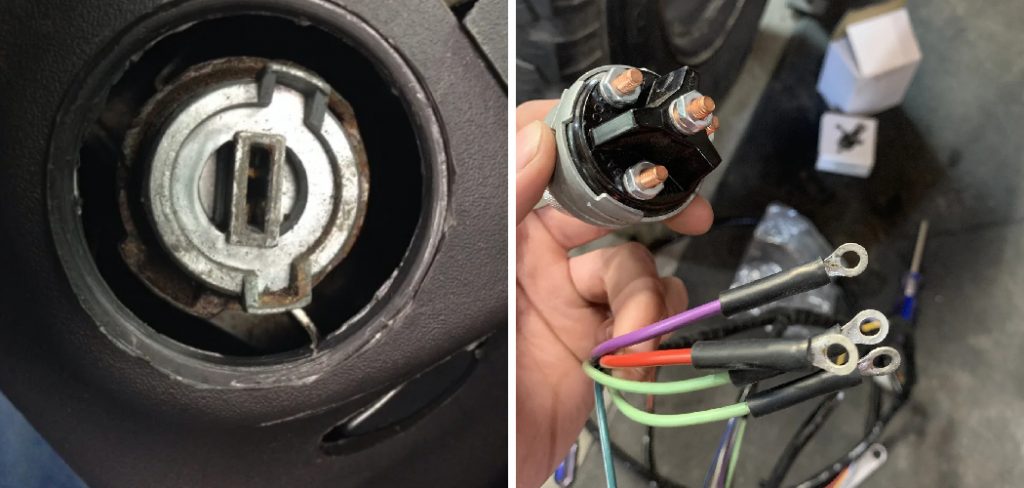

Troubleshooting issues with the ignition switch in your Jeep is essential for maintaining reliable vehicle operation and starting. The ignition switch serves as the gateway to your Jeep’s electrical system, initiating the starting process and controlling various electrical components.
When problems arise with the ignition switch, such as difficulty starting the engine, intermittent electrical failures, or a complete inability to start the vehicle, it’s crucial to diagnose and address the issue promptly.
In this guide, we’ll delve into how to troubleshoot jeep ignition switch, exploring common symptoms, potential causes, and step-by-step methods to identify and resolve ignition switch issues.
Whether you’re a seasoned mechanic or a Jeep owner looking to understand your vehicle’s electrical system better, mastering the art of troubleshooting the ignition switch is a valuable skill that can keep you on the road and ensure a smooth driving experience.
Importance of The Ignition Switch in A Jeep
The ignition switch in a Jeep is a pivotal component that cannot be overlooked. Not only does it act as the primary interface for starting your vehicle, but it also plays a crucial role in routing the electrical current to various accessories and systems when the engine is not running.
When functioning correctly, the ignition switch ensures that power is efficiently distributed to essential features such as the radio, headlights, and climate control systems, hence enhancing the overall functionality and comfort of the vehicle. Its central role in both the start-up process and the continued operation of the Jeep’s electrical accessories underscores the importance of a well-maintained ignition switch for a reliable and enjoyable driving experience.
Understanding the Ignition Switch
The ignition switch is an electrical component that is commonly found behind the ignition lock cylinder, where your key is inserted. It’s designed to complete the circuit when the key is turned, which signals the vehicle’s engine control unit (ECU) to engage the starter motor and ignite the engine.
The switch has multiple positions – typically ‘off’, ‘accessory’, ‘on’, and ‘start’. Each position corresponds to a different function, ranging from turning off all systems to powering specific electrical accessories, to starting the engine.

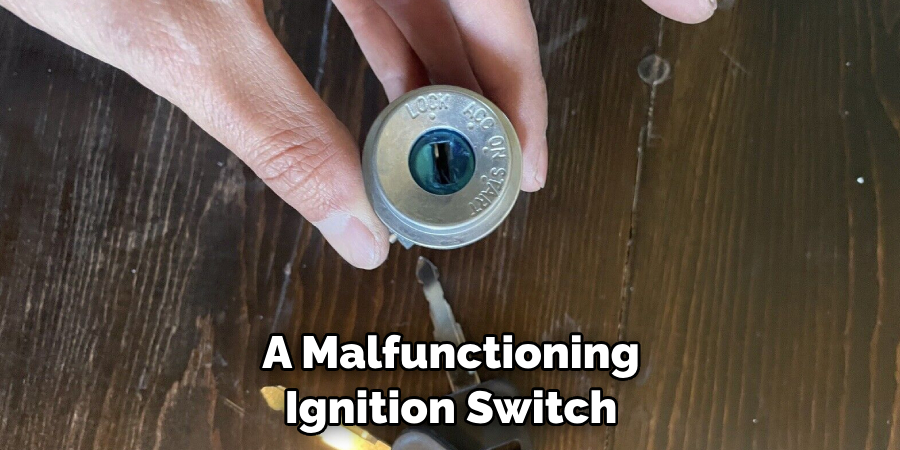

A malfunctioning ignition switch can disrupt this sequence, leading to issues with power distribution, starting the engine, or even causing the vehicle to stall while in motion. Understanding its operation and the symptoms of its failure are critical to identifying and resolving issues efficiently.
Components of the Ignition Switch
At the heart of your Jeep’s ignition system, the ignition switch comprises several key components working in harmony to initiate your vehicle’s operation. The primary parts include:
- The Lock Cylinder: This is where the key is inserted and turned. It is the mechanical component interface that drivers interact with regularly.
- The Electrical Switch: Attached directly to the back of the lock cylinder, the electrical switch carries out the electrical operations. It moves into different positions — accessory, on, start — as the key is turned, closing electrical circuits and directing current to various systems.
- The Starter Solenoid: This component is often integrated into the starter motor. When the ignition switch is turned to the start position, the solenoid receives voltage from the switch, acting as a powerful relay to supply electrical current to the starter.
- The Accessory Contacts: These maintain power to your Jeep’s accessories such as the radio, interior lights, and climate control when the key is turned to the accessory position.
- The Ignition Contacts: Responsible for powering the vehicle’s ignition system, fuel system, and various engine controls when in the ‘on’ position.
Understanding the individual components of the ignition switch helps in diagnosing problems. Each part plays a significant role, and failure in any one can cause overall ignition system issues.
Common Symptoms of Ignition Switch Issues
When your Jeep’s ignition switch starts to fail, it may display several warning signs that should not be ignored. These symptoms can impact your Jeep’s performance and your safety. Here are some common indicators of a faulty ignition switch:
- Difficulty in Turning the Key: If you find that the key is hard to turn or gets stuck, this could signal issues within the lock cylinder or the electrical switch components.
- Intermittent Loss of Power to Accessories: Flickering dashboard lights or accessories that suddenly turn off and on could mean that the electrical contacts within the switch are worn or damaged.
- Engine Stalling: A vehicle that stalls suddenly while driving may be experiencing power loss to the engine’s control systems due to a faulty ignition switch.
- No Start Condition: One of the most obvious symptoms is when the key is turned and nothing happens; no engine cranking, no sound, no dashboard lights.

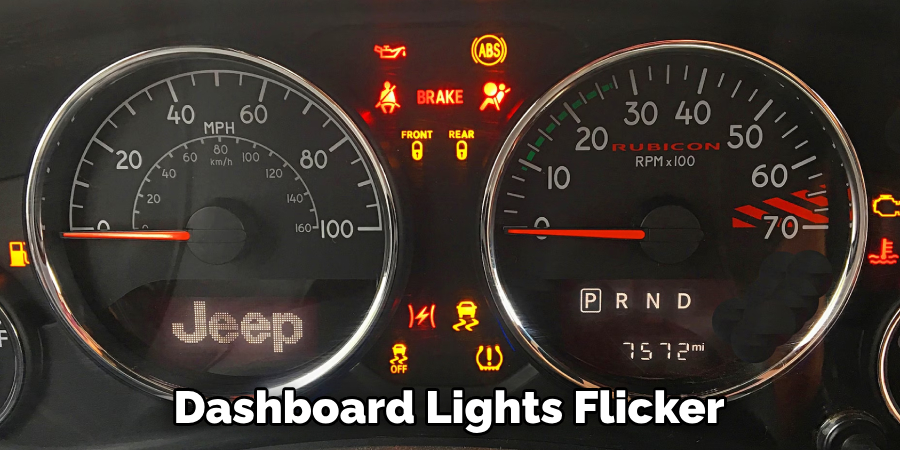

- Dashboard Lights Flicker or Don’t Come On: When turning the key to the ‘on’ position, if the dashboard lights flicker or fail to illuminate, it could be a sign that the ignition switch isn’t properly engaging the electrical system.
Being alert to these symptoms and addressing them promptly can prevent a minor ignition issue from escalating into a more serious problem that may leave you stranded.
10 Ways How to Troubleshoot Jeep Ignition Switch
1. Check Key and Key Cylinder:
Begin by inspecting the key for any signs of damage or wear. Ensure that the key is inserted fully into the ignition cylinder and turned to the correct position. A damaged key or improperly inserted key can cause issues with the ignition switch. If the key appears to be in good condition, then the next step is to check the ignition cylinder.
The ignition cylinder is the part of the ignition system that the key is inserted into. It contains tumblers which align with and allow movement of matching teeth on the key. Over time, these tumblers can wear down, causing issues with starting the vehicle.
To check the ignition cylinder, first, make sure the key is removed. Then, gently insert a small flathead screwdriver into the keyhole and wiggle it around. If there is any resistance or difficulty in moving the screwdriver, this could indicate that the tumblers are worn down. You can also try inserting and turning the key to see if it moves smoothly.
2. Verify Battery Condition:
Check the condition of the battery and ensure that it is fully charged. Weak or dead batteries can prevent the ignition switch from receiving sufficient power to start the vehicle. Clean the battery terminals and check for any signs of corrosion that may affect electrical connectivity. If the battery is older than three years, it may be time to replace it with a new one.

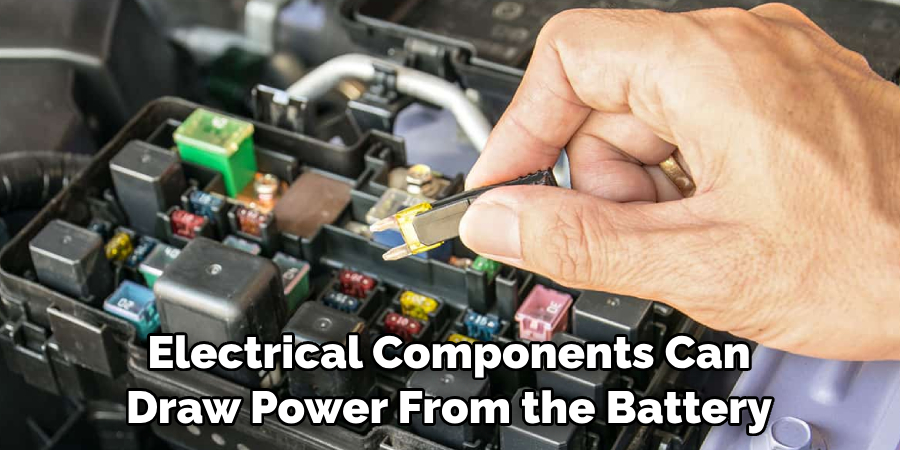

Additionally, make sure all other electrical components in your vehicle are working properly. This includes headlights, taillights, turn signals, and interior lights. Faulty electrical components can draw power from the battery and decrease its overall health.
3. Test Electrical Components:
Use a multimeter to test the electrical components connected to the ignition switch, including fuses, relays, and wiring harnesses. Check for continuity and voltage levels to identify any potential issues with the electrical system. Additionally, visually inspect the components for any signs of damage or wear. However, always disconnect the battery before testing any electrical components to avoid injury or damage to the vehicle.
Some common issues with electrical components include blown fuses, faulty relays, and frayed wiring. If you do find any damaged or worn out components, they will need to be replaced in order for your ignition system to function properly.
4. Inspect Ignition Switch Wiring:
Inspect the wiring harness connected to the ignition switch for any signs of damage, corrosion, or loose connections. Damaged wiring can disrupt the flow of electricity to the ignition switch and prevent proper operation. If any damage is found, the wiring harness will need to be replaced.
To begin, locate the ignition switch under the dashboard on the driver’s side of the vehicle. Carefully inspect all of the wires connected to it for any visible signs of wear or tear. Look for frayed or exposed wires, as well as any signs of corrosion such as rust or green discoloration. If any of the wires appear damaged, they will need to be replaced.
Next, check the connections of each wire to ensure they are securely attached to the ignition switch. Loose connections can also cause issues with the flow of electricity and should be tightened or reconnected if necessary.
5. Test Ignition Switch Contacts:
Use a multimeter to test the continuity of the ignition switch contacts. Check for consistent continuity across all contacts when the ignition switch is turned to different positions. Inconsistent continuity may indicate a faulty ignition switch. Although the ignition switch is a simple component, it plays a crucial role in starting and running your vehicle.
The ignition switch is responsible for delivering power to various electrical components in your vehicle, including the starter motor, fuel pump, and ignition system. It also acts as a security measure by preventing the engine from starting without the proper key or code.
If you suspect that your ignition switch is faulty, it’s important to get it checked and replaced if necessary. Ignoring the issue can lead to further electrical problems and potentially leave you stranded on the side of the road.
6. Check Ignition Lock Cylinder:
Inspect the ignition lock cylinder for any signs of wear or damage. A worn or damaged ignition lock cylinder can prevent the ignition switch from turning properly, leading to difficulty starting the vehicle.
If there are any visible signs of wear or damage, such as scratches or cracks, the ignition lock cylinder should be replaced. To do this, the ignition lock cylinder will need to be removed from the vehicle by using a special key or tool.
7. Monitor Dashboard Warning Lights:
Pay attention to any dashboard warning lights that illuminate when attempting to start the vehicle. Dashboard lights such as the battery, check engine, or immobilizer warning lights may provide clues to underlying ignition switch issues. Additionally, it is important to regularly check and maintain proper fluid levels to avoid potential issues with the vehicle’s engine or other components.
It is also recommended to perform routine maintenance on the vehicle ignition switch. This can include cleaning and lubricating the switch, checking for any loose connections or wires, and replacing worn out parts. Ignoring warning lights or neglecting routine maintenance can lead to more serious and costly issues with the ignition system.

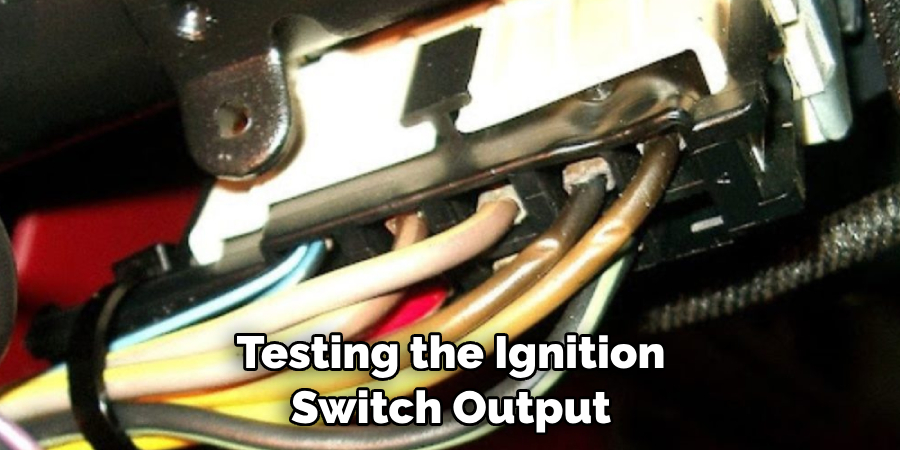

8. Test Ignition Switch Output:
Use a multimeter to test the output voltage of the ignition switch when the key is turned to different positions. Compare the measured voltage with the manufacturer’s specifications to determine if the ignition switch is functioning correctly. If the voltage is outside of the specified range, the ignition switch may need to be replaced.
Although testing the ignition switch output can provide valuable information, it is important to also consider other factors such as loose connections or damaged wiring that may be causing issues with the ignition system.
In addition to measuring the voltage output of the ignition switch, it is also important to check for any signs of wear or damage on the switch itself. Over time, constant use and exposure to heat and moisture can cause the switch to wear down and malfunction.
Look for any signs of corrosion or melted plastic around the terminals, as well as any physical damage to the switch itself. If these issues are present, it may be necessary to replace the entire ignition switch assembly.
9. Inspect Starter Solenoid:
Check the starter solenoid for any signs of damage or malfunction. The starter solenoid is responsible for engaging the starter motor when the ignition switch is turned to the start position. A faulty solenoid can prevent the engine from cranking properly.
Inspecting the starter solenoid is an important step in troubleshooting any starting issues with your vehicle. The solenoid acts as a relay between the ignition switch and the starter motor, allowing for a high current flow to be sent to the starter motor when you turn the key in the ignition.
To inspect the starter solenoid, begin by visually examining it for any signs of physical damage such as cracks or corrosion. If the solenoid appears to be physically damaged, it will likely need to be replaced.
10. Consult Service Manual or Professional Mechanic:
If troubleshooting steps do not identify the root cause of the ignition switch issue, refer to the Jeep service manual for additional guidance. Consider seeking assistance from a professional mechanic who specializes in automotive electrical systems for further diagnosis and repair.

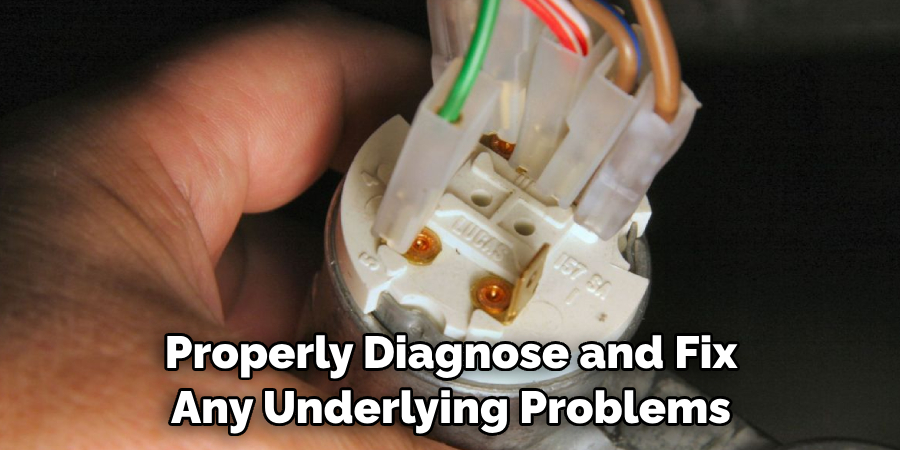

They will have the necessary tools and expertise to properly diagnose and fix any underlying problems with the ignition switch. If the switch needs to be replaced, ensure that a high-quality replacement part is used to avoid future issues.
Troubleshooting Tips and Techniques
Proper troubleshooting of an ignition switch issue requires a methodical approach. Firstly, ensure that the battery is fully charged and in good condition, as low battery voltage can mimic the symptoms of a failing ignition switch. Then, work through the electrical system systematically:
- Check for Loose Connections: Inspect all related wiring harnesses and terminals for any loose, dirty, or corroded connections. Clean and tighten connectors as needed to ensure good electrical contact.
- Examine the Ignition Switch Wiring: Trace the wiring from the ignition switch through to the starter solenoid, checking for any breaks, burns, or abrasions in the wiring insulation that could cause a short circuit.
- Fuse and Relay Inspection: Locate and inspect fuses and relays associated with the ignition system. Replace any that are blown or appear damaged. Relays can sometimes intermittently fail, so consider swapping with a known good relay for diagnostic purposes.
- Neutral Safety Switch Check: If your vehicle has an automatic transmission, verify the proper operation of the neutral safety switch. This switch prevents the starter from operating unless the transmission is in park or neutral.
- Check for Diagnostic Trouble Codes (DTCs): Utilize an OBD-II scanner to check for any stored diagnostic trouble codes that might indicate an electrical issue or sensor problem that could affect ignition operation.

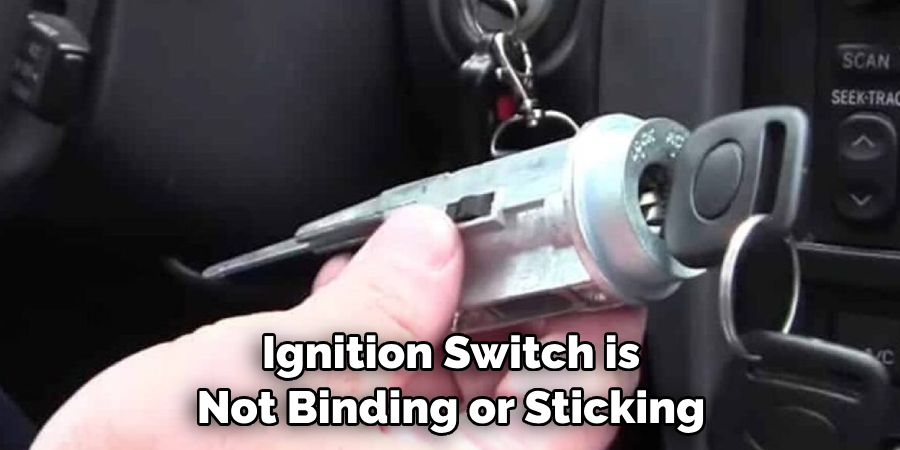

- Mechanical Inspection: Ensure that the mechanical part of the ignition switch is not binding or sticking, which could hinder the electrical portion from operating correctly.
Remember, diagnosing electrical issues can be complex and time-consuming, but a thorough and systematic approach often leads to the root cause. If you’re not comfortable with vehicle electrical systems, it may be safer and more cost-effective to seek professional assistance.
Conclusion
In conclusion, troubleshooting issues with the Jeep ignition switch is essential for ensuring reliable vehicle operation and diagnosing potential electrical problems. By following the ten detailed methods on how to troubleshoot jeep ignition switch, Jeep owners can effectively identify and address issues related to the ignition switch, such as difficulty starting the engine, intermittent electrical failures, or dashboard warning lights.
Taking a systematic approach to troubleshooting, including checking key and key cylinder, verifying battery condition, testing electrical components, and inspecting the ignition switch contacts, can help pinpoint the root cause of the problem.
Additionally, consulting service manuals and seeking assistance from professional mechanics can provide valuable insights into resolving complex ignition switch issues. By mastering the art of troubleshooting the Jeep ignition switch, owners can maintain optimal vehicle performance and ensure a smooth driving experience on and off the road.
