Are you planning on boosting or creating a high-performance engine? Or you want to improve the fuel efficiency of your vehicle. Whatever your reason may be, sizing injectors is an essential step in achieving your goals.
Choosing the correct injector size ensures optimal engine performance and efficiency. Whether upgrading a high-performance engine or replacing a worn injector, selecting the right one requires understanding your engine’s demands and the variables that influence fuel delivery. This includes factors like engine displacement, air-fuel ratio targets, and expected horsepower gains.
In this guide, we’ll walk you through the fundamentals of how to size injectors, the calculations involved, and the practical considerations to bear in mind to ensure that your engine operates at peak performance.
What Will You Need?
Before we dive into the details of sizing injectors, you’ll need a few things to get started:
- Basic understanding of your engine’s specifications and requirements
- Calculations for injector flow rate and duty cycle
- Knowledge of your desired air-fuel ratio and expected horsepower gains
- Access to an online fuel injector size calculator or software program (optional but recommended)
Once you have these essentials, you’re ready to begin the process of selecting the right size injector for your engine.
10 Easy Steps on How to Size Injectors
Step 1. Determine Your Engine’s Horsepower Goal:
Start by establishing a realistic horsepower target for your engine. This figure will form the basis for all subsequent calculations involving injector sizing. It’s essential to be as accurate as possible, as an underestimation can lead to choosing injectors that are too small, while an overestimation may result in purchasing unnecessarily large injectors.
Step 2. Calculate the Brake Specific Fuel Consumption (BSFC):
Next, calculate your engine’s BSFC, which is a measure of how much fuel the engine uses per unit of power output. Average BSFC values range from about 0.4 for turbocharged engines to 0.6 for naturally aspirated engines. You’ll need to adjust your BSFC based on the type of engine and its efficiency.

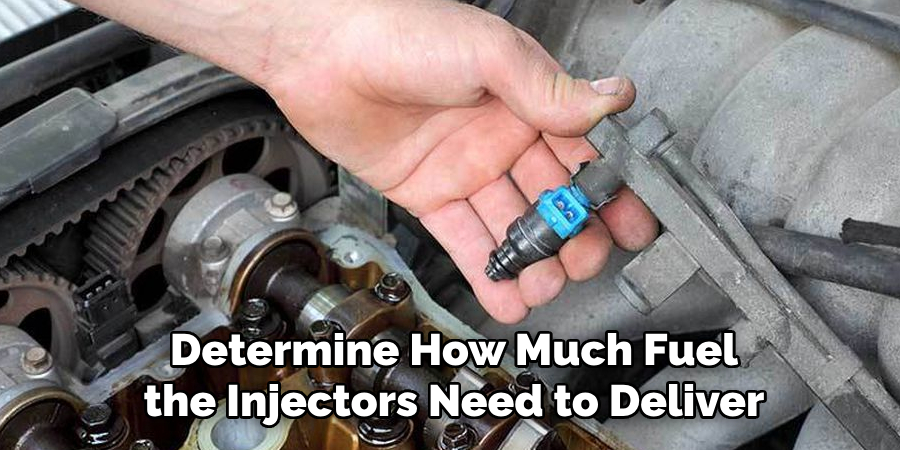

Remember, the more efficient your engine is, the lower the BSFC. This calculation is essential because it will determine how much fuel the injectors need to deliver to sustain the desired horsepower level.
Step 3. Establish the Maximum Duty Cycle of the Injectors:
The injector duty cycle refers to the percentage of time the fuel injectors are open and delivering fuel during the engine cycle. A safe duty cycle for an injector is typically around 80-85%. Running at 100% can lead to injectors overheating and failing. To ensure longevity and reliability, calculate your injector size based on a duty cycle that will not exceed 85% when your engine is at its maximum output.
Step 4. Understand the Engine’s Air-Fuel Ratio (AFR) Requirements:
When sizing injectors, it’s critical to determine the optimal air-fuel ratio for your engine under different operating conditions. Performance engines often run leaner to maximize power, whereas engines built for economy favor richer AFRs for improved fuel consumption.
Use your engine’s performance characteristics and the horsepower goal from Step 1 to establish the AFR that will deliver the best results for your specific application.
Step 5. Calculate the Air Flow Rate:
To determine the necessary fuel flow rate, you’ll need to know the engine’s air flow rate. This can be calculated using your engine’s displacement, maximum RPM, and volumetric efficiency (VE). Most engines have a VE between 85-95%, with performance engines typically having higher VE values. Be careful not to overestimate your engine’s VE, as this can result in choosing injectors that are too large.
Step 6: Calculate Fuel Flow Rate
Using the air flow rate calculated in Step 5, you can now determine the fuel flow rate required to meet your engine’s AFR. The fuel flow rate is dependent on the air flow rate and the specific AFR you aim for your engine.

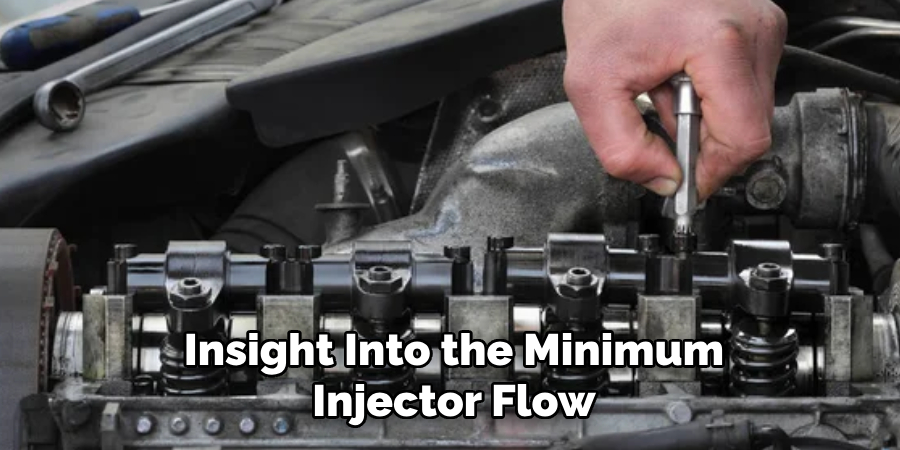

Apply the formula `Fuel Flow Rate = Air Flow Rate x (1 / AFR)` to calculate the amount of fuel needed. This will give you an insight into the minimum injector flow rate that’s necessary to achieve your performance goals without pushing the injectors beyond their optimal duty cycle.
Step 7: Select Injector Size Based on Fuel Flow Rate
Once you have calculated the fuel flow rate, it’s time to select the injector size that can deliver this rate at your desired duty cycle. Use the following formula to find the appropriate injector size: `Injector Size (lb/hr) = (Fuel Flow Rate (lb/hr) / Number of Injectors) / Duty Cycle`.
It’s important to account for the number of injectors your engine requires, as the total fuel flow rate needs to be divided among them. Selecting an injector that operates comfortably within this range will ensure that your engine is supplied with the right amount of fuel without putting undue stress on the injectors.
Step 8: Consider Injector Impedance

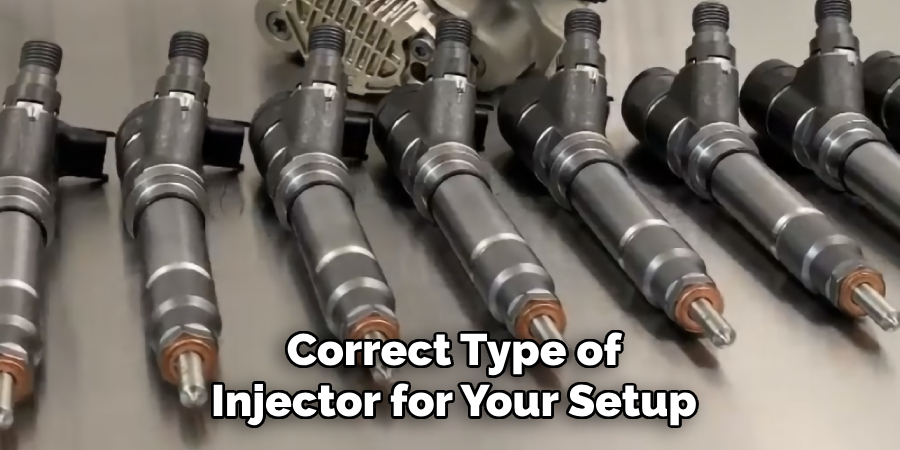

Injectors come in two main types: high impedance (also known as saturated) and low impedance (peak and hold). The choice between the two will depend on your engine’s control system.
High impedance injectors require less current and are typically better suited for factory ECU systems, while low impedance injectors can respond faster but require a peak and hold the driver or an aftermarket ECU capable of controlling them. Consult your ECU specifications or a professional to determine the correct type of injector for your setup.
Step 9: Verify Fuel Pressure Adjustments
The fuel flow rate is also influenced by the fuel pressure at which the injectors operate. Most injector flow rates are rated at a standard pressure of 43.5 psi (3 bar). If your application operates at a different fuel pressure, you’ll need to adjust the flow rate accordingly. It’s crucial to ensure the fuel pump and fuel pressure regulator can handle the required pressure settings.
Step 10: Finalize Injector Selection and Test
After completing the previous steps, you should now have a narrowed down selection of suitable injectors. Before finalizing your choice, it’s recommended to consult with the injector manufacturer or a professional tuner.
They can provide insights into the characteristics of different injectors and help you make the best decision for your engine. Once purchased, it’s advisable to have the injectors flow-tested to verify that they perform consistently and within specifications. Proper testing ensures that your engine will operate as intended, with each cylinder receiving the correct amount of fuel.
By following these steps and taking the time to calculate your engine’s fueling needs accurately, you can confidently select the suitable injectors for your performance goals.
5 Additional Tips and Tricks
- Understand Your Engine’s Performance Goals: Before sizing your injectors, have a clear understanding of your engine’s performance goals. High-performance engines may require larger injectors to deliver the needed fuel for more power, while efficiency-focused engines may benefit from smaller, more precise injectors.
- Consider Injector Duty Cycle: Aim for an injector duty cycle of 80-85% at maximum engine load to ensure the injectors are not operating at their absolute limit, which provides headroom for engine safety and longevity.
- Fuel Pressure Impact: Remember that fuel pressure can significantly impact injector flow rates. Higher fuel pressures can increase the flow through an injector; be sure this is accounted for in your calculations.

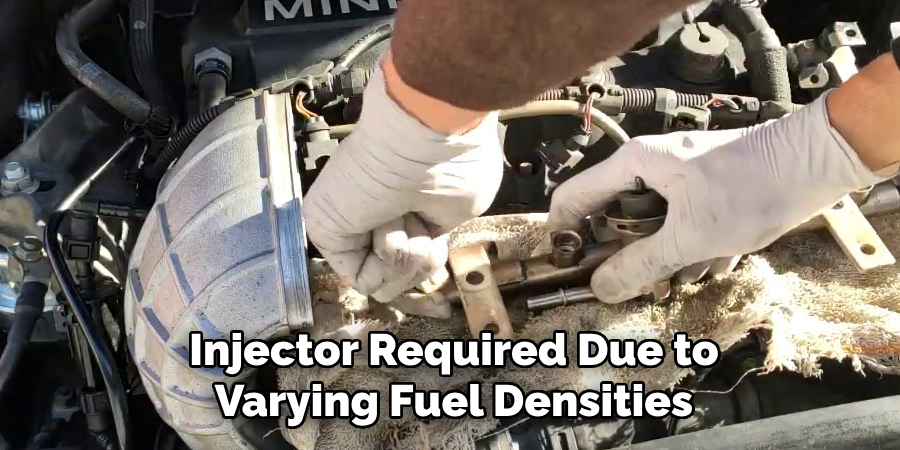

- Type of Fuel: The type of fuel you plan to use (e.g., gasoline, ethanol, methanol) can affect the size of the injector required due to varying fuel densities and stoichiometric ratios.
- Consult with Professionals: When in doubt, consulting with a professional tuner or engine builder can provide specific insights based on your vehicle’s characteristics and performance objectives.
With these additional tips and tricks, you can ensure that your injector sizing is accurate and tailored to your specific engine needs.
6 Things You Should Avoid When Sizing Injectors
- Ignoring Engine Upgrades: Avoid overlooking other modifications to your engine that can impact airflow and fuel requirements. Engine upgrades can alter the performance characteristics dramatically, necessitating a re-evaluation of injector size.
- Neglecting Fuel Quality: Don’t ignore the quality of the fuel you intend to use. Low-quality fuel can clog injectors and may require a different sizing strategy to compensate for potential inconsistencies.

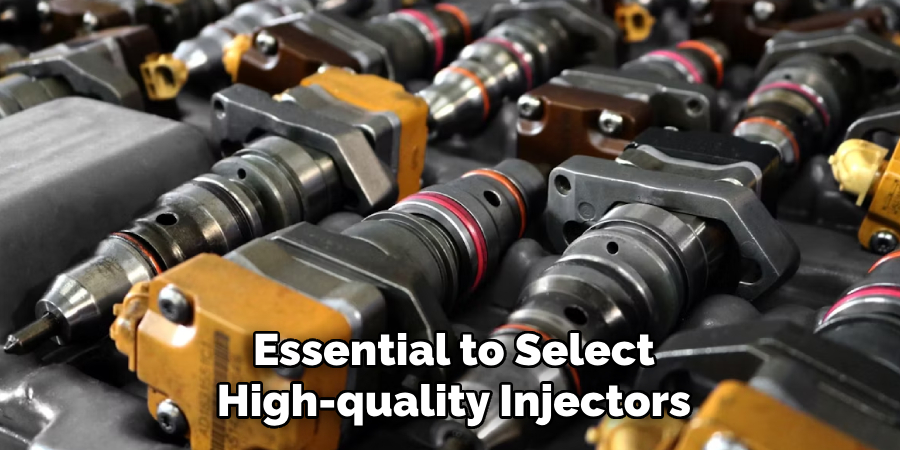

- Choosing Injectors Based Solely on Price: Injectors come in various price ranges, but choosing the cheapest option requires considering the quality and compatibility with your engine to avoid poor performance and potential engine damage.
- Disregarding Injector Response Time: It’s crucial to avoid injectors with slow response times as they can lead to inefficient fueling and reduced engine performance, especially in engines demanding quick changes in fuel delivery.

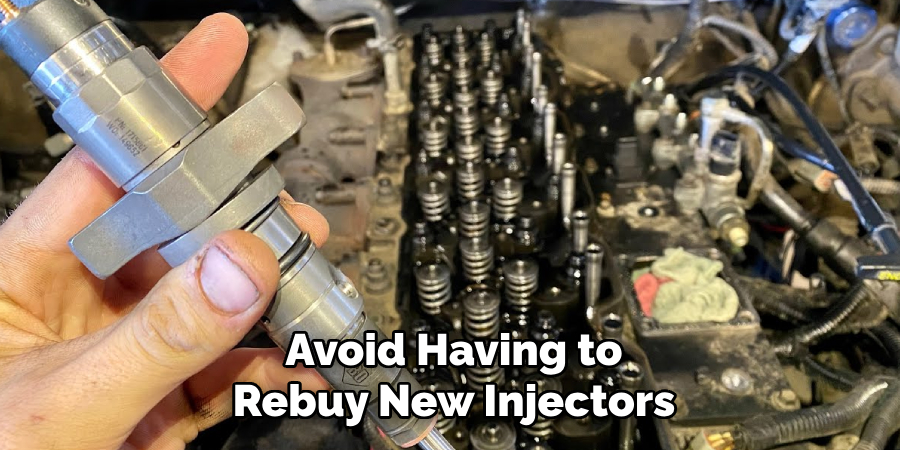

- Overlooking Future Plans: If you’re planning future upgrades, don’t size your injectors for your engine’s current state only. Consider what your fuel needs will be after any planned modifications to avoid having to rebuy new injectors.
- Not Testing and Tuning: Proper testing and tuning are essential for achieving optimal performance from your injectors. Neglecting this step can result in poor fuel delivery, engine damage, or even potential safety hazards.
By avoiding these common mistakes, you can ensure that your injector sizing process is accurate and tailored to your specific needs for maximum engine performance.
Some Frequently Asked Questions
1. Will Bigger Injectors Increase HP?
While it’s a common belief that larger fuel injectors will inherently increase an engine’s horsepower (HP), this is not always the case. The function of injectors is to provide the engine with the appropriate amount of fuel to mix with the air entering the combustion chamber.
Just increasing the size of the injectors without a corresponding need for additional fuel may not improve engine performance and can actually lead to a rich air-fuel mixture, potentially causing poor combustion and decreased efficiency.
For injectors to increase HP, they must be part of a larger strategy that includes modifications such as increased airflow, higher compression ratios, or forced induction systems that can utilize the additional fuel delivered by bigger injectors. Only when these changes require more fuel for an optimal air-to-fuel ratio will larger injectors contribute to a tangible increase in horsepower.
Once again, it is crucial to consult with professionals and carefully consider your engine’s needs and goals before sizing injectors. Bigger isn’t always better, and proper injector sizing is a key aspect of maximizing engine performance.
With the proper knowledge and approach, you can ensure that your fuel injection system is optimized for peak performance while also maintaining safety and longevity for your engine.
2. Which Fuel Injectors Are Best?
The best fuel injectors for your engine will ultimately depend on various factors, such as the performance goals of your engine, the type of fuel being used, and compatibility with other modifications. It’s essential to select high-quality injectors from reputable brands that have been tested and proven to work well with similar engines.
Additionally, consider the features and specifications of different injectors, such as flow rate, pulse width, and response time, to ensure they are suitable for your specific engine needs. It’s also helpful to read reviews and seek advice from professionals who have experience with similar setups.
Ultimately, the best fuel injectors are those that provide an adequate and consistent flow of fuel at the correct times, resulting in optimal performance for your particular engine. Again, it’s crucial to consult with experts and carefully consider your engine’s needs when selecting the best fuel injectors.
3. Is It Bad to Run Bigger Injectors?
While bigger injectors can offer benefits such as increased power and fuel delivery, misusing them or without proper tuning can lead to negative consequences.
One potential issue is an overly rich air-fuel mixture, which can cause poor engine performance and contribute to carbon buildup in the combustion chamber. Additionally, too much fuel entering the engine can potentially damage components such as spark plugs and catalytic converters.
Therefore, it’s essential to size and tune injectors for your engine properly and continuously monitor the air-fuel ratio to avoid these problems. With proper care and maintenance, using bigger injectors can be a safe and effective way to improve engine performance. However, caution should always be taken when making any changes to your fuel system, as even small adjustments can have significant impacts on engine operation.

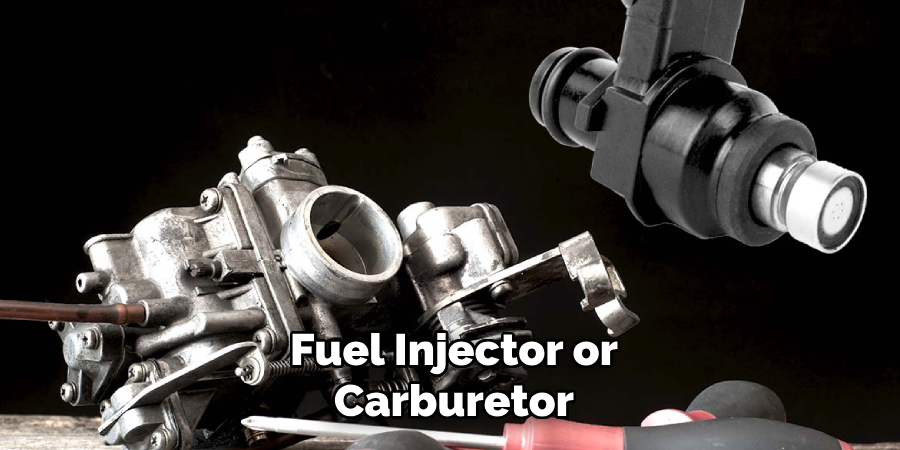

4. Which is Better Fuel Injector or Carburetor?
The answer to this question depends on various factors, including personal preference and the specific needs of your engine. Both fuel injectors and carburetors serve the same purpose of delivering fuel to the engine, but they operate in different ways.
Fuel injectors use electronic control systems to precisely meter and distribute fuel, whereas carburetors rely on mechanical components such as jets and float bowls to mix and deliver fuel.
Fuel injectors are generally more efficient and offer better control over the air-fuel ratio, resulting in improved performance and fuel economy. However, carburetors may be preferred by some due to their simplicity and potentially lower cost.
Ultimately, the choice between a fuel injector or carburetor will depend on your engine’s needs and how each option aligns with your goals and preferences. It’s always best to consult with experts and carefully consider all aspects before making a decision. Properly selected and maintained, both fuel injectors and carburetors can provide efficient and reliable fuel delivery for your engine.
5. Do Fuel Injectors Affect Speed?
Yes, fuel injectors can significantly impact the speed and performance of an engine. As mentioned previously, the function of fuel injectors is to deliver the necessary amount of fuel to mix with incoming air for combustion. Therefore, if the injectors are not properly sized or functioning correctly, it can result in a poor air-fuel ratio and decreased engine power.
On the other hand, adequately sized and tuned injectors can enhance engine performance by providing a consistent and adequate flow of fuel. Additionally, larger injectors may also contribute to increased power potential when combined with other modifications that require more fuel.
However, as with any changes made to an engine, it’s crucial to approach injector sizing with caution and seek professional guidance to avoid negative impacts on engine speed and performance. Properly selected and maintained fuel injectors can play a significant role in achieving optimal speed and power for your engine.
Overall, the proper selection and maintenance of fuel injectors is crucial for enhancing engine performance while also ensuring safety and longevity.
Conclusion
In conclusion, how to size injectors is a critical component in optimizing an engine’s performance. It requires a balance of various factors, including the engine’s airflow, the intended performance enhancements, and the overall compatibility with existing modifications. It’s essential to choose injectors that will not only meet the current needs of your engine but also have the potential to support future upgrades.
Settling for injectors that match your engine’s requirements will prevent performance issues associated with either inadequate fuel delivery or excessive fuel supply. Remember, consulting with professionals and using precise calculations are key steps in ensuring that your fuel injectors contribute positively to your engine’s power and efficiency rather than detracting from its potential.
With the right approach and expertise, you can select fuel injectors that will elevate your engine’s performance to its peak capability.
