Experiencing a sticking clutch pedal in your Jeep can be both inconvenient and hazardous, disrupting the seamless operation essential for the safe maneuvering of the vehicle. The clutch is critical in ensuring a smooth transition between gears, and any issues could compromise your driving safety.
Jeeps are typically equipped with either cable-operated or hydraulic clutch systems, each with unique diagnostic approaches. Understanding the type of system installed in your vehicle is the first step toward accurate troubleshooting and effective repair. So keep reading to learn more about how to fix jeep clutch pedal sticking.
Symptoms of a Sticking Clutch Pedal
One of the most apparent symptoms of a sticking clutch pedal is a change in pedal feel; a pedal that, once moved smoothly, may now have a spongy, sticky, or sluggish response. The degree of pedal travel before disengagement is critical, and any noticeable increase or decrease could indicate an underlying issue with the clutch mechanism.
An elongated pedal travel usually points towards a stretched or worn clutch cable in cable-operated systems. In contrast, hydraulic systems with too much pedal travel may suffer from a loss of hydraulic fluid or air bubbles in the line.
Another symptom drivers may notice is resistance in the pedal. When pressing or releasing the clutch pedal, a sticking or binding sensation may develop over time, often caused by failing clutch components such as the throw-out bearing or pressure plate in both cable and hydraulic systems.
This resistance can also be accompanied by unusual noises — squeaking or cackling from the pedal area is never a good sign and usually arises from the clutch release mechanism in urgent need of attention.
Moreover, difficulty in shifting gears is a common complaint associated with a sticking clutch pedal. Drivers may find it hard to engage or disengage gears, which could lead to grinding noises as the gears clash. Gear shifting issues tend to be more prominent in hydraulic systems when there is a leak or when air has entered the hydraulic line, compromising the pressure needed to operate the clutch properly.
Regardless of the Jeep’s clutch system type, a sticking clutch pedal should not be ignored. Cable systems may require adjustment or replacement of the cable, while hydraulic systems often need fluid level checks, leak repairs, or air bleeding to restore proper function. Identifying these symptoms early can prevent more severe problems and ensure your Jeep stays reliable and safe to drive.
Potential Causes of the Issue
Identifying the root cause of a sticking clutch pedal in a Jeep is vital for effective resolution. Causes generally fall into several categories and can affect cable-operated or hydraulic clutch systems differently.
Mechanical Issues:
The complexity of clutch operation invites various mechanical issues that can lead to a sticking pedal. Worn components are commonly at fault, where the clutch disc, pressure plate, and throw-out bearing may degrade over time due to friction and use. Additionally, linkage or cable problems, such as fraying, rust, or broken parts, are a concern, particularly in cable-operated systems.
These can prevent proper clutch engagement and disengagement. The clutch fork, which acts as a lever to push the throw-out bearing, and the pivot point, which provides a fulcrum for the fork, can also malfunction or suffer from wear.
Hydraulic Issues (if applicable):

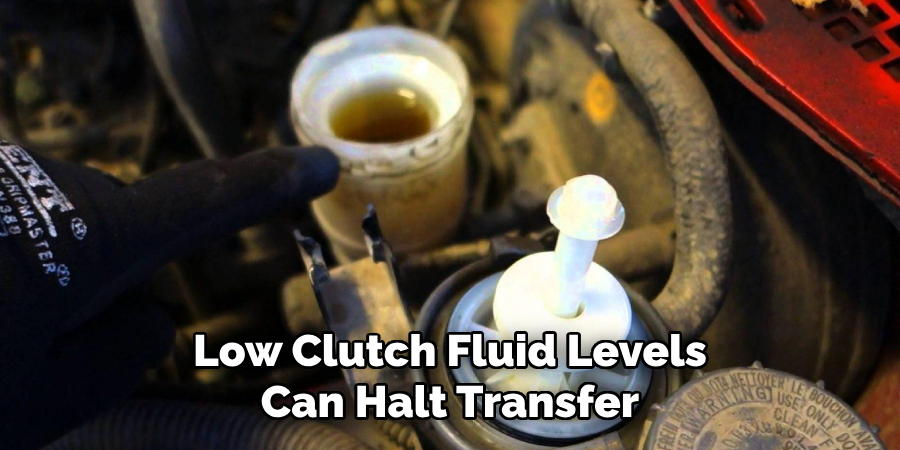

Hydraulic systems use fluid to transfer movement from the pedal to the clutch mechanism. Low clutch fluid levels can halt this transfer, causing a sticking pedal. Similarly, leaks in the clutch master or slave cylinders will interrupt the hydraulic pressure to operate the clutch.
Lastly, even if fluid levels are adequate, air trapped in the hydraulic system can create an inconsistent pedal feel and sticking issues, as air is compressible, unlike fluid.
Other Potential Causes:
Outside of the typical mechanical and hydraulic issues, other factors may contribute to the problem. A faulty clutch pedal assembly can stem from defects in the pedal mechanism itself or its connection to the rest of the clutch system.
While less common, electrical problems can also lead to a sticking pedal in systems with electronic controls or sensors involved in clutch operation.
Each of these potential causes can dramatically influence the performance of your Jeep’s clutch. With careful attention to symptoms and understanding these issues, Jeep owners can take the first steps towards diagnosing and resolving a sticking clutch pedal.
Initial Diagnostics and Safety Precautions
Before diving into repair or replacement, performing initial diagnostics is imperative to pinpoint the cause of a sticking clutch pedal. Begin by parking your Jeep on a level surface and using the brake.
Use wheel chocks behind the wheels to prevent any potential rolling for added safety. Always ensure you have the appropriate tools and understand the procedures in your Jeep’s service manual.
Start with visual inspections of the clutch pedal assembly. Check for any visible damage or obstruction that could impede pedal movement. For Jeeps with a cable-operated clutch system, inspect the cable’s fraying, corrosion, or slack condition. Simple tests for cable tension can be conducted by attempting to move the cable by hand; there should be only a slight give.

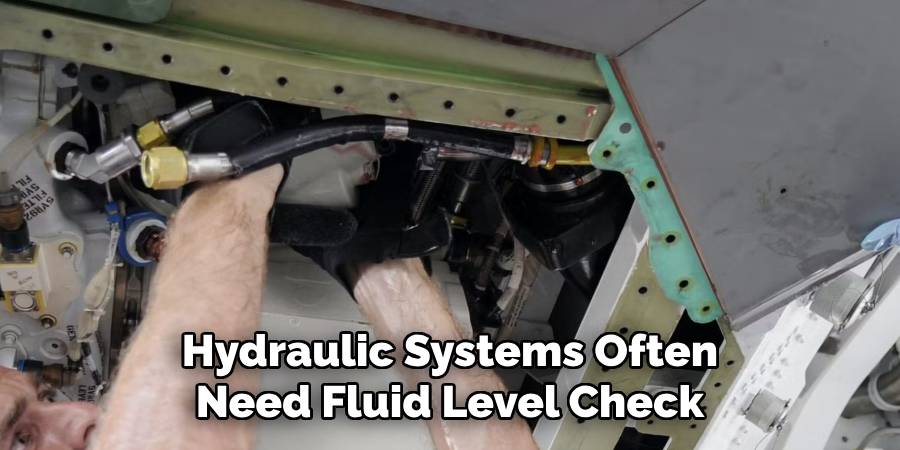

In hydraulic systems, check the clutch fluid reservoir. The fluid should be at the appropriate level and free of contamination. If low, it may suggest a leak, requiring further inspection of the master and slave cylinders for signs of fluid release.
Air in the hydraulic system is another concern; a spongy pedal feel during depression can indicate this problem, necessitating bleeding of the system to remove any trapped air.
Additionally, evaluate the overall movement of the clutch pedal. Press it down and observe if it returns to its original position without hindrance. Any deviation from the normal resistance and travel could signify an internal issue with the clutch assembly.
Throughout this diagnostic process, prioritize safety and accuracy. Never work under a vehicle that is not securely supported by jack stands, and always use the correct tools for each task to minimize the risk of injury or further damage to your Jeep. Following these initial steps, you can safely narrow down potential causes and determine the best action for addressing a sticking clutch pedal.
Tools and Resources Needed
To effectively address a sticking clutch pedal in a Jeep, certain tools are essential. A set of socket wrenches, screwdrivers, and pliers will be crucial for mechanical investigations.
A flashlight and inspection mirror can help identify less visible issues. For hydraulic system repairs, you may require a fluid pump, tubing for bleeding the system, and possibly flare nut wrenches for the hydraulic fittings.
It is recommended to reference your Jeep’s specific service manual for guidance, found in online databases such as Chilton or Haynes. Jeep forums and online automotive repair sites offer ample community advice and step-by-step tutorials tailored to your Jeep model.
Troubleshooting Specific Issues
Troubleshooting a sticking clutch pedal involves a methodical approach to address each potential cause. Follow these detailed steps to identify and resolve issues, considering the differences between cable-operated and hydraulic systems.
Adjusting Clutch Cable Tension (Cable-operated systems):

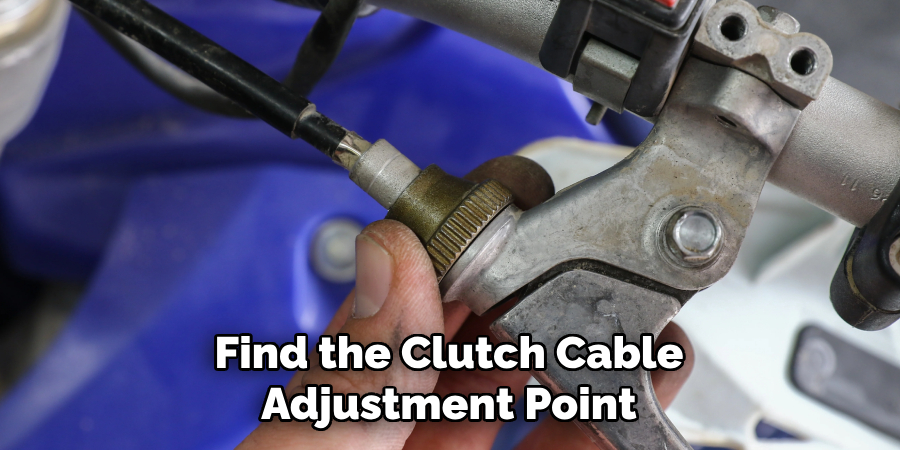

1. Locate the Clutch Cable: Consult your Jeep’s service manual to find the clutch cable adjustment point, usually on the clutch fork or near the transmission.
2. Check Tension: Press the clutch pedal lightly. The cable should have about 1 inch of free play. If there is more or less, adjust it.
3. Adjust the Cable:
- Loosen the locknut on the adjustment screw at the clutch lever.
- Turn the adjustment screw to either tighten or loosen the cable tension.
- Once the correct tension is achieved, tighten the locknut to secure it.
Visuals showing the location of the adjustment point and the correct tension may be found in dedicated repair manuals.
Inspecting for Leaks and Refilling Clutch Fluid (Hydraulic systems):
1. Inspect Master and Slave Cylinders: Look for weeping or dripping fluid around the cylinders and along the hydraulic lines.
2. Check the Fluid Reservoir: Low fluid levels often indicate a leak. Clean any dirt from around the reservoir cap before opening to prevent contamination.
3. Refill Fluid: Use the type of fluid recommended in your service manual and fill to the indicated level.
Photos or diagrams of cylinder locations in the engine bay can be useful references and are typically found in Jeep forums or your service manual.
Bleeding Air from the Hydraulic System:
1. Locate Bleeder Valve: Find the bleeder valve on the slave cylinder using your service manual.
2. Attach Bleeding Kit: Fix a tube to the valve and place the other end in a container partially filled with brake fluid to observe air bubbles.
3. Bleed the System:

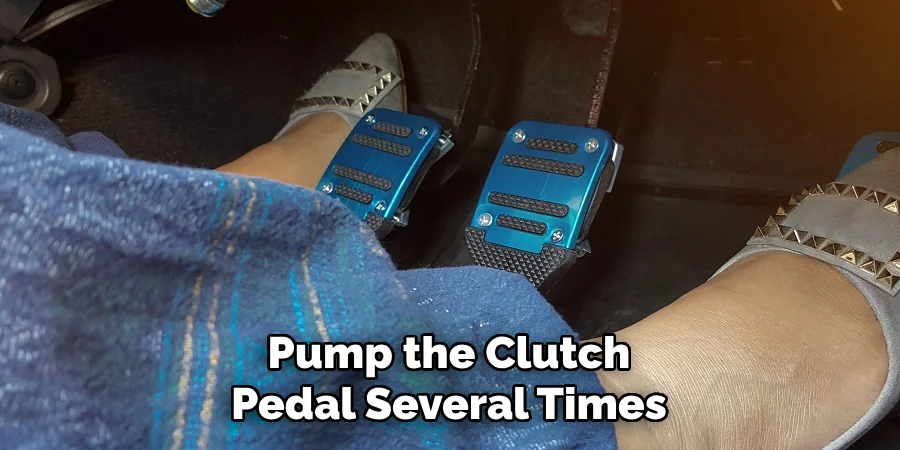

- Have an assistant pump the clutch pedal several times, then hold it down.
- Open the valve to release fluid and air until you see no more air bubbles.
- Close the valve before the pedal is released, and repeat until there are no more air bubbles.
Clear tubing helps visually confirm when air is no longer present in the fluid being expelled.
Visually Assessing Clutch Components (if accessible):
1. Access Clutch Assembly: This often requires partial transmission removal and should only be attempted by those with significant mechanical experience. Check after your troubleshooting steps, if the issue persists, it is wise to consult with a skilled mechanic.
2. Clutch Disc and Pressure Plate: Look for excessive wear, heat marks, or damage.
3. Examine the Throw-Out Bearing and Fork: Check for smooth operation and lack of excessive play.
Photographs or diagrams of a healthy clutch assembly compared to a worn one can guide you in this assessment.
Safety Precautions:
Always ensure your Jeep is on a level surface and properly supported by jack stands when working underneath. Do not attempt to work on components that are beyond your skill level or without the proper tools. Be aware that without proper knowledge, attempting DIY repairs can potentially cause further damage or injury.
Limitations of DIY Repairs:
Some clutch issues, like internal damage to the transmission or clutch assembly, may be beyond the scope of DIY and require professional attention. If the issue persists after your troubleshooting steps, it is wise to consult with a skilled mechanic.
Remember to seek visual aids like diagrams and videos matching your Jeep model. These can often be found online or in specialized repair manuals, making the troubleshooting process more understandable.
The Complete Guide on How to Fix Jeep Clutch Pedal Sticking: A DIY Masterclass
1. Replacing a Worn Clutch Cable (Cable-operated systems):
- Remove the Old Cable:

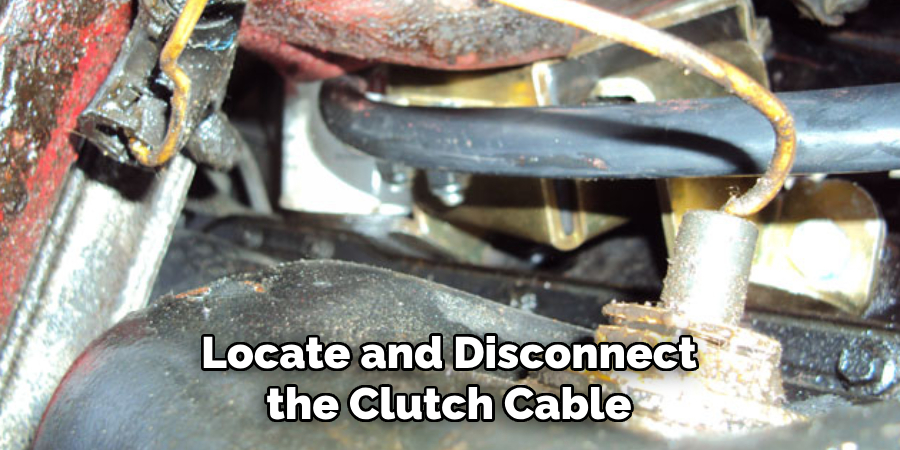

- Locate and disconnect the clutch cable from the clutch lever.
- Trace the cable back to where it connects to the pedal and disconnect it there as well.
- Remove any retaining clips or cable ties.
- Install the New Cable:
- Route the new cable the same way the old one was fitted.
- Connect it to the pedal and then to the clutch lever, ensuring there is no binding or snagging.
- Adjust the cable to the manufacturer’s recommended free play.
- Confirm the cable is secured with retaining clips or ties.
Complexity: Moderate. For someone with a mechanical inclination and standard tools.
2. Replacing a Faulty Clutch Master or Slave Cylinder (Hydraulic systems):
- Removal of Faulty Cylinder:
- Begin with the master cylinder. Remove the fluid from the reservoir.
- Disconnect the hydraulic line and then unbolt the cylinder from the firewall.
- For the slave cylinder, locate it on the transmission, disconnect the hydraulic line and remove mounting bolts.
- Installation of New Cylinder:
- Bolt the new cylinders into place.
- Reconnect the hydraulic lines. Ensure the connections are clean and properly torqued.
- Refill the system with fluid and bleed the system to remove air.
Complexity: High. Professional assistance is recommended due to the precision required for hydraulic systems.
3. Adjusting or Replacing the Clutch Pedal Assembly:
- Adjusting the Assembly:
- Examine the pedal assembly for any signs of wear or damage.
- Make any necessary adjustments to the pedal height and free play according to the service manual.
- Replacing the Assembly:
- Unbolt the assembly from the firewall and disconnect it from the clutch master cylinder.

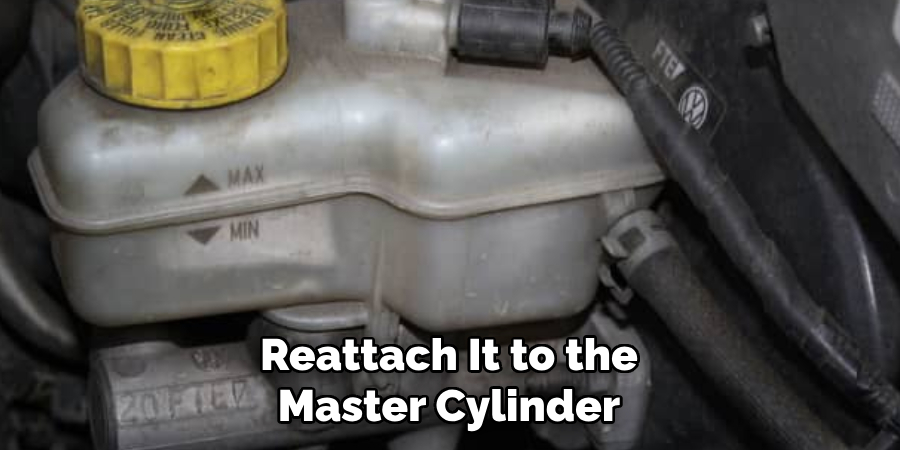

- Install the new assembly, reattach it to the master cylinder, and adjust as necessary.
Complexity: Varies. Adjustments may be simple, while replacements can be complex due to the location and need for accuracy.
When performing any of the above repairs, follow torque specifications as outlined in the service manual. For replacement parts, use the OEM part numbers to ensure compatibility. Always cross-check torque specs and part numbers against the latest manufacturer updates or service bulletins. Professional assistance is recommended for jobs that require special tools or in-depth mechanical knowledge.
4. Advanced Diagnostics and Professional Help:
While DIY repairs are suitable for minor issues, advanced problems require professional diagnosis. Mechanics utilize sophisticated diagnostic tools such as OBD-II scanners to interpret error codes and digital multimeters to evaluate electrical connections.
For seeking qualified mechanics, look for certifications like ASE (Automotive Service Excellence) and check for positive customer reviews. When provided with repair estimates, ask for a detailed breakdown to understand the labor costs and parts involved. Trust reputable shops to avoid unnecessary repairs and ensure that your Jeep receives the best care for complex clutch issues.
That’s it! You’ve now learned the basics of how to fix jeep clutch pedal sticking. Remember, always prioritize safety, use proper tools and follow manufacturer guidelines when working on your vehicle. With determination and patience, you can successfully diagnose and repair any clutch issues your Jeep may have.
4 Common Mistakes People Make When Trying to Fix Jeep Clutch Pedal Sticking
1. Not Properly Identifying the Issue:
Many people assume that a sticking clutch pedal is caused by a worn clutch cable, when in fact it could be due to a faulty master or slave cylinder. It’s important to properly diagnose the issue before attempting any repairs. This can save time and money and prevent further damage to your Jeep.
2. Skipping Safety Precautions:
Working on a vehicle can be dangerous if proper safety precautions are not taken. Always ensure your Jeep is properly supported on jack stands and that you have the necessary tools before attempting any repairs. Be aware of your skill level, and do not attempt repairs beyond your capabilities.
3. Using Incorrect Parts or Torque Specs:
Using incorrect parts or torque specs can cause further damage to your Jeep and potentially lead to costly repairs down the road. Always consult the service manual for the correct specifications and use OEM parts whenever possible.
4. Neglecting Advanced Diagnostics and Professional Help:
Attempting DIY repairs on complex clutch issues without proper knowledge and tools can cause further damage to your vehicle. It’s important to seek professional help and utilize advanced diagnostic tools for accurate diagnosis and repair. This will save you time and money and ensure the best care for your Jeep.
We hope this guide has helped understand how to fix a Jeep clutch pedal sticking issue. Always follow proper safety precautions, consult the service manual for correct specifications, and seek professional help for advanced issues. With these tips in mind, you can confidently troubleshoot and fix any clutch pedal sticking problems that may arise with your Jeep.
Conclusion
In conclusion, maintaining a functional clutch system in your Jeep requires attention to signs of wear and adherence to scheduled maintenance. Regular inspections and replacing components like the clutch cable, master, or slave cylinder before they fail can save time and money.
Employing proper driving techniques, such as avoiding riding the clutch and ensuring full engagement before shifting, will extend the life of your clutch system.
Remember, while DIY methods can address many issues, professionals should trust complex problems. Keep your vehicle in top condition by following these guidelines and confidently driving. Thanks for reading our post about how to fix jeep clutch pedal sticking.
