Calibrating a Jeep speedometer is a critical task to ensure accurate readings and maintain safe driving conditions. A Jeep’s speedometer can become inaccurate due to various factors such as changes in tire size, gear ratio modifications, or aftermarket upgrades. This can lead to discrepancies between the displayed speed and the actual speed of the vehicle, potentially compromising safety on the road.
Proper calibration ensures that the speedometer reflects the precise speed at which the Jeep is traveling, promoting safer driving practices and compliance with speed limits. In this article, we will explore how to calibrate jeep speedometer, factors affecting its accuracy, and a range of methods and techniques for achieving precise calibration.
Whether you’re a seasoned mechanic or a Jeep enthusiast looking to maintain optimal performance, understanding how to calibrate your Jeep’s speedometer is essential for safe and reliable driving experiences.
Understanding Speedometer Calibration
Speedometer calibration is essentially the process of adjusting the instrument that displays your vehicle’s speed so that it reads accurately. For Jeep owners, this may become necessary when modifications like different-sized tires or new gear ratios are set in place.
Without proper calibration, your speedometer can display speeds that are slower or faster than the actual amounts you’re moving, resulting in issues like inaccurate odometer readings and, more importantly, performance being affected due to miscalculated operating parameters.
Factors Affecting Speedometer Accuracy
Several factors can influence the accuracy of your Jeep’s speedometer. The most common is the installation of larger or smaller tires than what the vehicle is programmed to expect. When the tire circumference changes, it affects the number of revolutions per mile, which in turn impacts the speed reading.
Additionally, changing the gear ratio, such as when altering the Jeep for better off-road performance or efficiency, will also affect the speedometer’s accuracy because the rate at which the vehicle’s wheels spin relative to the engine speed has changed. Aging vehicle sensors and non-standard tire wear can further contribute to inaccurate speedometer readings. Understanding these factors is crucial to knowing when and why to calibrate your speedometer.
Pre-Calibration Preparation
Before you begin the process of calibrating your Jeep’s speedometer, a few preparatory steps are essential to ensure accuracy and safety. First, record your Jeep’s current tire size and gear ratio, as these are critical inputs for calibration. Next, check that your tires are properly inflated to the manufacturer’s recommended pressure, as tire pressure can affect the circumference and, therefore, the speedometer reading.
Gather any tools or devices, such as a programmer or calibration tool, that you might need for the calibration process. Lastly, ensure that your Jeep is on level ground and in a safe location where you can work without interruptions or hazards. Proper preparation will pave the way for a smooth and successful calibration process.
10 Methods How To Calibrate Jeep Speedometer
Let’s walk through a few popular methods Jeep owners can use to recalibrate their speedometer and the nuances associated with each approach.
Calibrating a Jeep speedometer is a crucial task to ensure accurate readings and maintain proper functionality. Whether you’ve installed aftermarket tires, changed the gear ratio, or made modifications to your vehicle, recalibrating the speedometer becomes essential to ensure that the displayed speed matches the actual speed of your Jeep.
In this comprehensive guide, we’ll explore ten methods to calibrate a Jeep speedometer, ranging from manual adjustments to using advanced calibration tools.
1. Check Tire Size and Gear Ratio:
Before delving into specific calibration methods, it’s crucial to confirm that your Jeep’s tires and gear ratio are within the factory specifications. Alterations in tire size or gear ratio can lead to inaccurate speedometer readings. Consult your Jeep’s user manual or contact the manufacturer to determine the correct tire size and gear ratio for your vehicle.
Once you’ve confirmed that these specifications are correct, you can proceed with calibrating your speedometer. This will ensure that your Jeep’s speedometer accurately reflects your vehicle’s speed and mileage.
2. Manual Speedometer Calibration:
Some Jeep models come with a manual calibration option that allows you to adjust the speedometer reading. Refer to your vehicle’s user manual for instructions on how to access and use the manual calibration feature. This method might involve a combination of pressing buttons or using a menu on the dashboard display to make the necessary adjustments.
After completing the calibration, make sure to test the accuracy of your speedometer reading by comparing it to a GPS device or using a speed trap. However, keep in mind that manual calibration may not always be accurate and could potentially void your vehicle’s warranty.
3. Use a GPS Speedometer App:
Utilize a GPS speedometer app on your smartphone to measure your actual speed. Drive your Jeep at a consistent speed, comparing the GPS speed reading to the displayed speed on your vehicle’s speedometer. If there is a discrepancy, take note of the difference, and use this information for calibration.
GPS speedometer apps are incredibly convenient and easy to use. They utilize your smartphone’s GPS system to accurately measure your speed in real-time. Not only can you use these apps for calibration purposes, but they also have additional features such as trip tracking and average speed calculations.
4. Speedometer Calibration Kits:
Invest in a speedometer calibration kit, which typically includes a calibration tool or module that connects to your Jeep’s onboard computer. These kits are designed to recalibrate the speedometer based on changes in tire size, gear ratio, or other modifications. Follow the kit’s instructions for proper installation and calibration.
Calibrating your speedometer is an essential step in ensuring that you have accurate readings on your Jeep’s dashboard. It not only helps with maintaining the overall performance of your vehicle, but it also keeps you safe while driving.
There are a few key reasons why you may need to recalibrate your speedometer. One common reason is due to changes in tire size and gear ratio.
5. Professional OBD-II Scanner:
Use a professional OBD-II (On-Board Diagnostics) scanner with calibration capabilities. Connect the scanner to your Jeep’s OBD-II port and follow the on-screen prompts to adjust the speedometer settings. This method is more advanced and may require some technical knowledge, so consult the scanner’s manual for guidance.
Another option is to use a GPS speedometer calibration device. This type of device connects to your Jeep’s OBD-II port and uses satellite signals to accurately measure your vehicle’s speed. It then sends this information to the ECU (Engine Control Unit) and adjusts the speedometer accordingly.
6. Consult a Dealership or Mechanic:
Seek assistance from a Jeep dealership or a qualified mechanic if you are uncertain about calibrating the speedometer yourself. They have access to specialized tools and knowledge to ensure accurate calibration, especially if your Jeep has undergone significant modifications. Additionally, they can also help diagnose any underlying issues that may be causing the inaccurate reading.
If you are planning to modify your Jeep’s tires or gear ratio, it is best to consult with a dealership or mechanic beforehand. They can advise on the appropriate steps to calibrate your speedometer after modifications and ensure proper functioning of your Jeep’s systems.

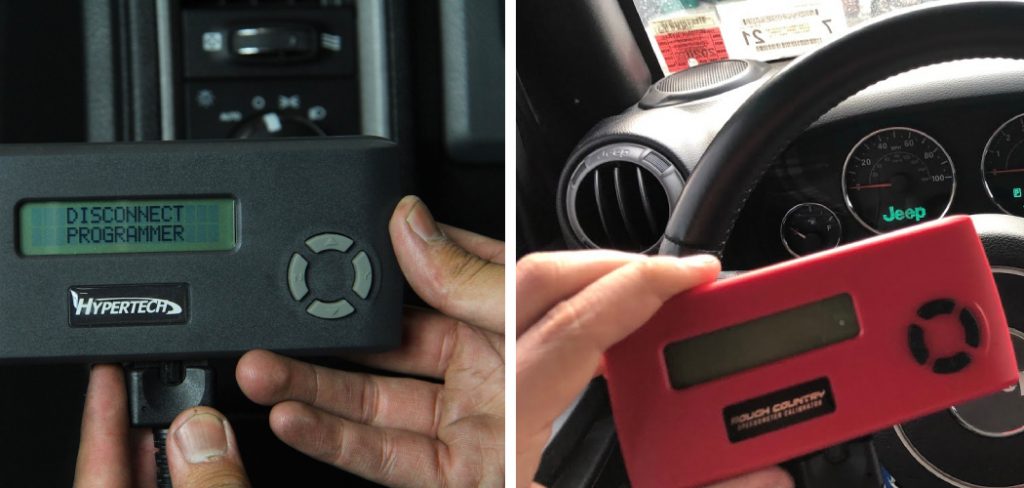

7. Flash Tuner/Programmer:
Consider using a flash tuner or programmer designed for your specific Jeep model. These devices allow you to modify various settings in your vehicle’s computer, including the speedometer calibration. Follow the instructions provided with the tuner to make the necessary adjustments.
Additionally, some tuners also offer preset options for popular tire sizes and gear ratios, making the process even easier. Although they can be a bit pricey, investing in a flash tuner or programmer can save you both time and money in the long run.
8. Electronic Speedometer Calibration Tool:
Invest in an electronic speedometer calibration tool, which is a dedicated device designed for adjusting speedometer readings. Connect the tool to your Jeep’s speed sensor and follow the manufacturer’s instructions to input the correct parameters for accurate calibration.
These tools can also be used to recalibrate for changes in tire size or gear ratios, making them a valuable tool for any Jeep owner. Though they may be more expensive upfront, the convenience and accuracy they provide make them well worth the investment.
Some popular electronic speedometer calibration tools for Jeeps include the Superchips Flashcal Speedometer Calibrator and the Hypertech In-Line Speedometer Calibrator. These devices are designed specifically for use with Jeep Wranglers and offer a simple plug-and-play installation process.
9. Verify with Mile Markers:
On a highway or open road with clearly marked mile markers, drive your Jeep over a known distance (e.g., 1 mile). Use a stopwatch to measure the time it takes to cover that distance. Calculate the average speed based on the time and compare it to the displayed speedometer reading. Adjust the calibration as needed.
To further verify the accuracy of your Jeep’s speedometer, you can also compare it with GPS data. Most smartphones have built-in GPS capabilities and there are also various apps that can track your speed while driving. Simply turn on the GPS and use one of these apps to monitor your speed while driving your Jeep.
Then, compare the GPS recorded speed with the displayed speedometer reading. If there is a significant difference, it may be necessary to recalibrate the speedometer.
10. Online Speedometer Calibration Tools:
Explore online speedometer calibration tools that allow you to input your Jeep’s specifications and receive recommended calibration adjustments. These tools often take into account tire size, gear ratio, and other relevant factors. Use the generated data to manually adjust your speedometer.
Check out popular speedometer calibration tools such as Speedo Correction and TrailCal, which have user-friendly interfaces for a hassle-free experience. With these online tools, you can adjust the reading on your speedometer to match the actual speed of your vehicle, providing more accurate measurements.
Troubleshooting and Common Issues
When calibrating your Jeep’s speedometer, you might encounter a variety of issues that can impede your success. If you’re using a manual calibration method and can’t get the speedometer to show accurate readings, double-check that you’ve entered all the necessary information correctly, including tire size and gear ratio.
If utilizing a GPS app or calibration kit, ensure that your Jeep’s software is up-to-date since outdated software can cause inaccuracies.
Sometimes, connectivity issues or electrical interference can affect calibration tools and scanners, so make certain that your connections are secure and that there is no damage to any cables or ports.
Furthermore, if your Jeep has been modified extensively, the basic calibration procedures may not be sufficient, and you may need to seek out more extensive diagnostics or custom calibration services. It’s essential to consult your owner’s manual or reach out to a professional if you face persistent issues beyond the scope of standard calibration techniques.
Tips and Best Practices
Common Issues and Troubleshooting
Incorrect Data Input: A simple typo when inputting information into a calibration tool can throw off the entire process. Double-check your inputs before confirming them.
Persistent Discrepancy: If you’re finding the calibration isn’t quite hitting the mark, re-evaluate your changes. It may be necessary to revert to the default settings and start over.
Important Factors to Consider During Calibration
Stability of Changes: If you’re making significant adjustments to tire size or gear ratios, consider the long-term effects on your vehicle’s drivability and systems.
Safety Precautions: Whether you’re DIY-ing or taking your Jeep to a professional, always ensure safety measures are in place, How to Calibrate Jeep Speedometerespecially when working under or around a vehicle.
Safety Considerations When Calibrating Your Jeep’s Speedometer
Before you begin the speedometer calibration process, it is crucial to prioritize safety for both you and your vehicle. Always perform calibration in a safe environment, away from traffic and on level ground to prevent the Jeep from rolling.
Make sure the vehicle is turned off and that you engage the parking brake before connecting any calibration tools. Wear protective gear such as gloves and safety glasses when working with electronic components to prevent injuries. Lastly, if performing road tests, choose a quiet road with little to no traffic and comply with all road safety regulations.
It’s always preferable to have an assistant who can help with the tests and watch for potential hazards. Remember, no calibration is worth compromising personal safety. While the process may seem daunting initially, calibrating your Jeep’s speedometer is a relatively straightforward and essential task for maintaining accurate readings.
With the right tools, appropriate knowledge, and safety precautions in place, you can ensure your Jeep’s speedometer displays precise information about your vehicle’s speed at all times.
Maintenance and Regular Calibration Checks
Regular maintenance and calibration checks are vital to ensuring the ongoing accuracy of your Jeep’s speedometer. It is recommended to schedule a speedometer check after any modification to the tires or drivetrain, or at least every oil change interval. This allows you to catch any discrepancies early and adjust accordingly.
In addition to these periodic checks, keep an eye out for symptoms of speedometer misalignment, such as inconsistent speedometer readings or discrepancies between your actual speed and posted speed limits. These could indicate that it’s time for a calibration even if you haven’t made any recent changes to your vehicle.
Use a log to track the history of your speedometer calibrations, including the date, the reason for the calibration, and any adjustments made. This record can be a valuable reference for understanding your Jeep’s performance over time and ensuring that any patterns of inaccuracy are addressed promptly. Remember, maintaining an accurate speedometer is not only essential for lawful driving but also for the health and longevity of your vehicle.
Conclusion
In the world of Jeep ownership, maintaining an accurately calibrated speedometer is not just about obeying the law, although that’s crucial too. It’s about ensuring that every component within your machine operates optimally.
As you journey through the various terrains life presents, take the time to recalibrate your speedometer, for in doing so, you recalibrate your entire off-road experience—smoother drives, more confident maneuvers, and the truest sense of the trail under your tires.
Deciding on the method of calibration is a personal choice, but what’s universally undeniable is the prowess it infuses in your Jeep – a machine fine-tuned not just for the roads, but for the free spirits who take them on.
So, go ahead, rev up your engine and unleash the full potential of your Jeep with a well-calibrated speedometer. Safe travels! It’s always recommended to regularly maintain and check your speedometer calibration to ensure accurate readings. Now that you know how to calibrate jeep speedometer.
While it does take a few steps each time, hopefully now you understand the process and why it’s worth taking the extra step to make sure your floor is properly cared for. So don’t wait any longer, take action today!
